Clamp meter

Item Code : testo 770-1

Combined with a smartphone or tablet, the testo 115i clamp thermometer is the ideal temperature measuring instrument for carrying out servicing and troubleshooting on refrigeration, air conditioning and heating systems, as well as for installing them. It can also be used to measure flow and return temperatures.

  • Convenient temperature measurement on refrigeration, air conditioning and heating systems – thanks to wireless connection to your smartphone or tablet
  • Fast identification of temperature changes by graphic progression display
  • Measurement data analyzed and sent via testo Smart App
  • Problem-free application at measuring points that are a long distance apart thanks to Bluetooth® range up to 100 m

Rs.17,620.00/-

GST and accessories extra.
Qty
  • USP's
  • Technical data
  • Downloads

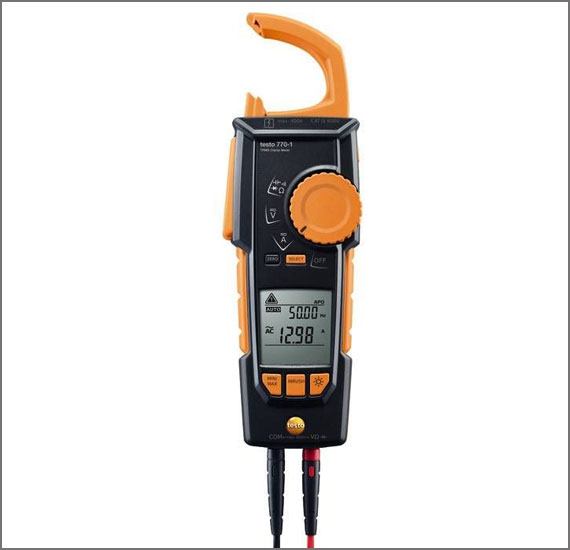

The testo 770-1 clamp meter is ideally suited for non-contact current measurement on tightly packed power cables or conductors with a small diameter. The unique grab mechanism means you can grab each individual cable easily and safely.

Item Features :
  • Fully retractable pincer arm for maximum flexibility
  • Auto AC/DC
  • Large two-line display
  • Measures the common electrical parameters
DC voltage

Measuring range

1.0 to 600.0 V

Resolution

max. 1 mV

Accuracy

± (0.8 % of mv + 3 Digit)
AC voltage

Measuring range

1.0 mV to 600.0 V

Resolution

max. 1 mV

Accuracy

± (1.0 % of mv + 3 Digit)
DC current

Measuring range

0.1 to 400 A

Resolution

max. 0.1

Accuracy

± (2 % of mv + 5 Digit)
AC current

Measuring range

0.1 to 400 A

Resolution

max. 0.1 A

Accuracy

± (2 % of mv + 5 Digit)
Resistance

Resolution

max. 0.1 Ohm

Measuring range

0.1 to 40.00 MOhm

Accuracy

± (1.5 % of mv + 3 Digit)

Capacitance

Resolution

max. 0.01 nF

Measuring range

10 nF to 100.0 μF

Accuracy

± (1.5 % of mv + 5 Digit)
Frequency

Measuring range

10 nF to 100.0 μF

Accuracy

±(0.1 % + 1 Digit)

General technical data

Operating humidity

0 to 80 %RH

Weight

378 g

Dimensions

249 x 96 x 43 mm

Operating temperature

-10 to +50 °C

Product colour

Black

Standards

EN 61326-1; EN 61010-2-032; EN 61140

Battery type

3 AAA micro batteries

Display type

LCD

Display size

2 lines

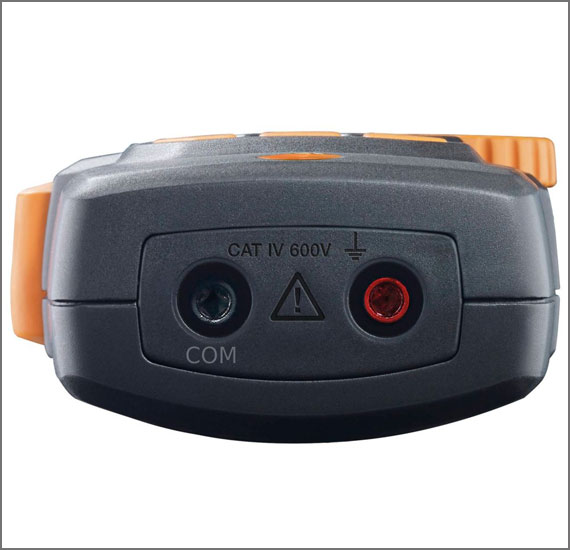

Interface

2 measuring jacks

Storage temperature

-15 to +60 °C

Overvoltage Category

CAT IV 600V; CAT III 1000V

Authorizations

CSA; CE

Internal_resistance

11 MOhm (AC / DC)
Instrument Measurement Functions

Diode test

yes

Continuity testing

yes

Display ligthing

yes

Hold

yes

MinMax

yes

True RMS

yes

Inrush current measurement

yes

Display (counts)

4,000

Autom. measurement parameter detection

yes
