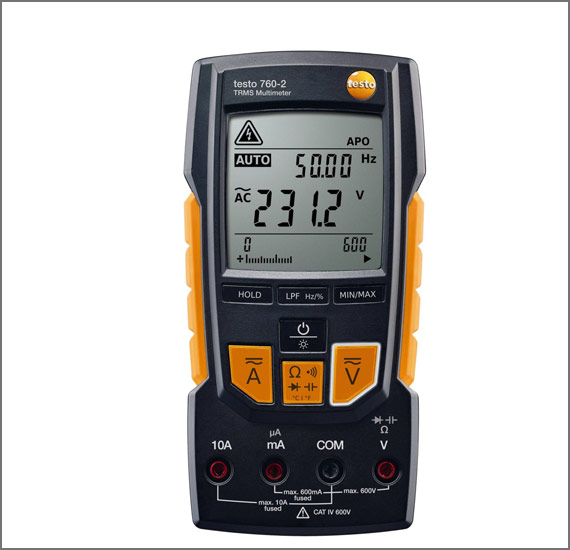

Digital multimeter 760-2

Item Code : testo 760-2

The testo 760-2 digital handheld multimeter means you can measure electrical parameters more easily and reliably than ever before. In contrast to other multimeters, the testo 760-2 automatically detects the appropriate measurement parameter via the socket assignment – and therefore rules out any dangerous incorrect settings. It is not operated conventionally by a dial, but with illuminated function keys. This means you can easily control the measuring instrument with just one hand. The large, illuminated display shows the readings clearly. The testo 760-2 digital multimeter has the most important functions for measuring current, voltage and resistance. The measurement of current strength is also possible in the µA range thanks to the larger measuring range. And the integrated low-pass filter achieves more accurate measurement results on frequency converter controlled motors. Temperatures can also be measured with this multimeter in addition to electrical parameters.

Rs.20,340.00/-

GST and accessories extra.
Qty
  • USP's
  • Technical data
  • Downloads

Easy, reliable work thanks to automatic measurement parameter detection
Current measurement in the µA range
Easy, reliable work thanks to automatic measurement parameter detection
Low-pass filter for accurate measurement results on frequency converter controlled motors.

Item Features :
  • Easy, reliable operation through automatic measurement parameter detection
  • Current measurement in the µA range
  • True root mean square measurement - TRMS
  • Low-pass filter for accurate measurement results on frequency converter controlled motors
Temperature - TC Type K (NiCr-Ni)

Measuring range

-20 to +500 °C

Accuracy

±1 °C (0 to +100 °C)

Resolution

0.2 °C

DC voltage

Measuring range

0.1 to 600 V

Resolution

max. 0.1 mV

Accuracy

± (0.8 % of mv + 3 Digit)

AC voltage

Measuring range

0.1 mV to 600 V

Resolution

max. 0.1 mV

Accuracy

± (1.0 % of mv + 3 Digit)

DC current

Measuring range

0.1 μA to 10 A

Resolution

max. 0.1

Accuracy

± (1.5 % of mv + 5 Digit)

AC current

Measuring range

0.1 μA to 10 A

Resolution

max. 0.1 μA

Accuracy

± (1.5 % of mv + 5 Digit)

Resistance

Resolution

max. 0.01 Ohm

Measuring range

0.01 to 60.00 MOhm

Accuracy

± (1.5 % of mv + 3 Digit)

Capacitance

Resolution

max. 0.01 nF

Measuring range

0.001 nF to 30000 μF

Accuracy

± (1.5 % of mv + 5 Digit)

Frequency

Resolution

max. 0.1 Hz

Measuring range

0.001 Hz to 30.00 MHz

Accuracy

± (0.1 % of mv + 1 Digit)

General technical data

Operating humidity

0 to 80 %RH

Weight

340 g

Dimensions

167 x 85 x 45 mm

Operating temperature

-10 to +50 °C

Product colour

Black

Protection class

IP64

Standards

EN 61326-1; EN 61010-2-033; EN 61140

Battery type

3 AAA micro batteries

Display type

LCD

Display size

2 lines

Interface

4 measuring jacks

Storage temperature

-15 to +60 °C

Overvoltage Category

CAT III 1000V; CAT IV 600V

Authorizations

CSA

CSA; CE

Internal_resistance

11 MOhm (AC / DC)

Instrument Measurement Functions

Diode test

yes

Continuity testing

yes

Current probe measurement with adapter

yes

Display ligthing

yes

Hold

yes

MinMax

yes

Temperature measurement with adapter

yes

True RMS

yes

Low-pass filter

yes

Duty cycle measurement

yes

Display (counts)

6,000

μA current measuring range

yes

Autom. measurement parameter detection

yes
