Thermal imager with super-telephoto lens

Item Code : testo 885

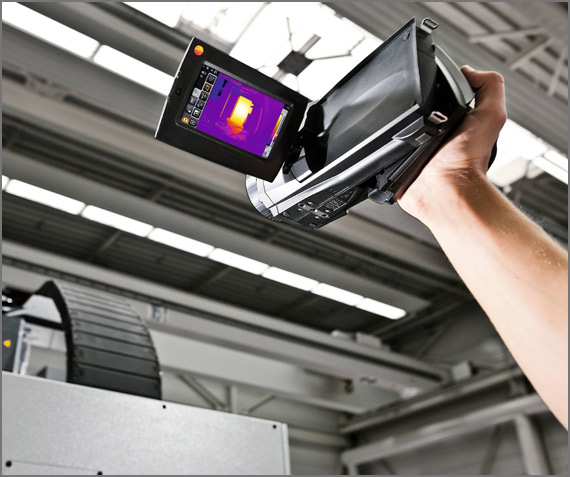

The testo 885 thermal imager with super-telephoto lens enables Testo to offer an instrument which is suitable for carrying out thermography over long distances. The super-telephoto lens makes it feasible to accurately record distant measurement objects.

Item Features :

  • testo 885 professional thermal imager: resolution 320 x 240 pixels, upgradable to 640 x 480 pixels with SuperResolution, thermal sensitivity < 30 mK
  • Super-telephoto lens with a 5° x 3.7° field of view for the accurate recording of extremely distant objects
  • Measurement functions for professional inspections: 10 measuring points, 5 min/max on area, isotherm, limit values with acoustic alarm
  • Licence-free testo IRSoft professional software

Price on request

GST and accessories extra.
Qty
  • USP's
  • Technical data
  • Downloads

Product Description

The testo 885 thermal imager with super-telephoto lens enables Testo to offer an instrument which is suitable for carrying out thermography over long distances. The super-telephoto lens makes it feasible to accurately record distant measurement objects. The thermal imager is therefore particularly suitable for:

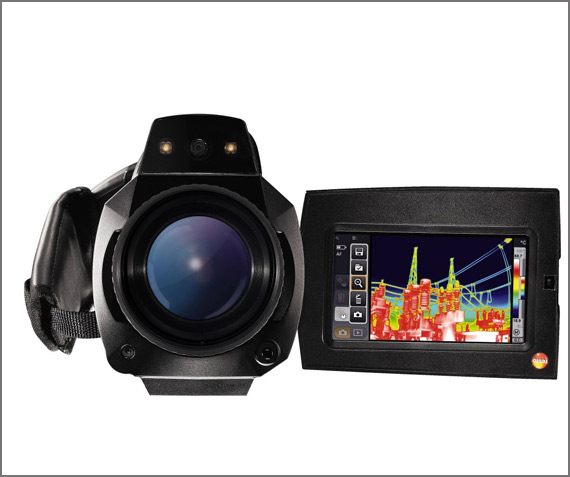

  • Inspecting high-voltage lines (even the smallest connections can be checked from a great distance)
  • Locating hotspots in solar parks (e.g. to detect defective cells)
  • Detecting irregularities in large industrial plants (e.g. refineries)

Discover all the technical features of the testo 885 thermal imager with super-telephoto lens

testo 885 thermal imager:
  • Detector size 320 x 240 pixels: with 76,800 temperature measuring points, measurement objects are photographed extremely clearly and accurately, in outstanding image quality
  • SuperResolution Technology to 640 x 480 pixels: this feature takes the image quality to the next level – making the resolution of the thermal images four times higher
  • Integrated digital camera with power LEDs: ideal for assigning thermographic images to real images and thus for creating perfect documentation for customers
  • User-friendly operation: ergonomic rotating handle and rotatable, fold-out display
  • You can also choose to save thermal images as JPEGs

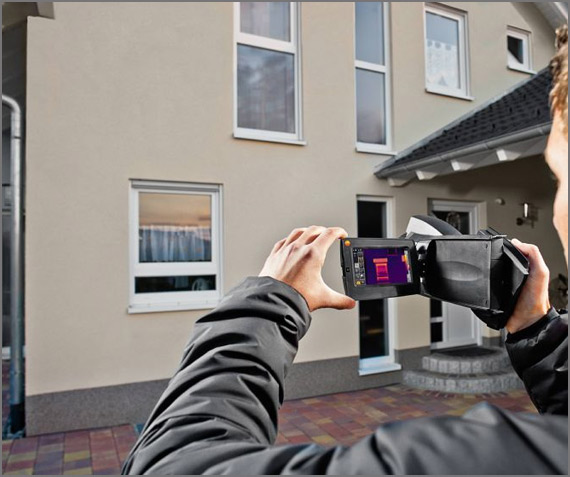

  • Panorama image assistant: in the case of large measurement objects, the panorama image assistant enables analysis and documentation of the measurement with an overall image compiled from multiple individual images. So there is no need to manage, view and compare a large number of images, which can be laborious. It enables images of entire building shells
  • SiteRecognition technology: for recurrent thermal imaging of similar measurement objects, SiteRecognition technology offers immediate measuring location identification, as well as automatic assignment and archiving of thermal images
  • Process analysis package (optional): the combination of fully radiometric video and sequence capturing in the camera enables wireless measurement and easier handling at the measuring location
  • FeverDetection (optional): use the assistant to check people for high body temperature in public places and in means of transport – for public health protection
  • Lens exchange possible (e.g. to use optionally available additional lenses)
  • Voice recording with headset
  • Auto-focus for one-handed operation and to prevent blurred images
  • Professional software testo IRSoft: allows the thermographic images to be analyzed on the PC

5° x 3.7° super-telephoto lens:
  • Compatible super-telephoto lens for the testo 885 thermal imager
  • Small field of view (5° x 3.7°) for maximum resolution of particularly distant objects
  • Easy to handle: no additional lens holder needed

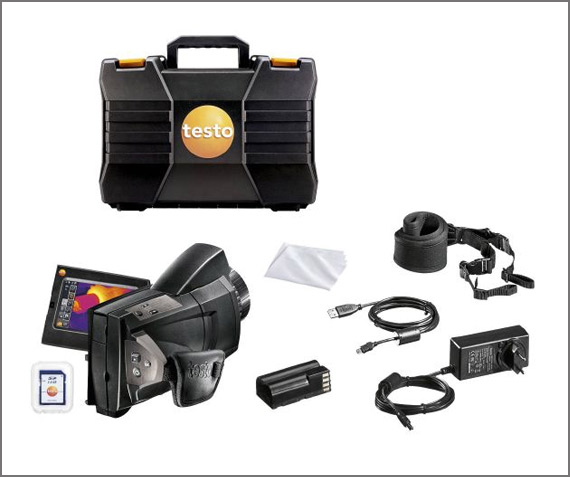

Delivery Scope

  • testo 885 thermal imager with 5° super-telephoto lens and SuperResolution
  • Robust transport case
  • Pro software IRSoft (free download)
  • SD card
  • USB cable
  • Carrying strap
  • Lens cleaning cloth
  • Mains unit
  • Li-ion rechargeable battery
  • Headset

Ambient Condition

Operating temperature

-15 to +50 °C

Storage temperature

-30 to +60 °C

Air humidity

20 to 80 % RH non-condensing

Housing protection class

IP54

Vibration

2G

Image output visual

Image size

3.1 MP

Minimum focus distance

0.5 m

Image presentation

Display type

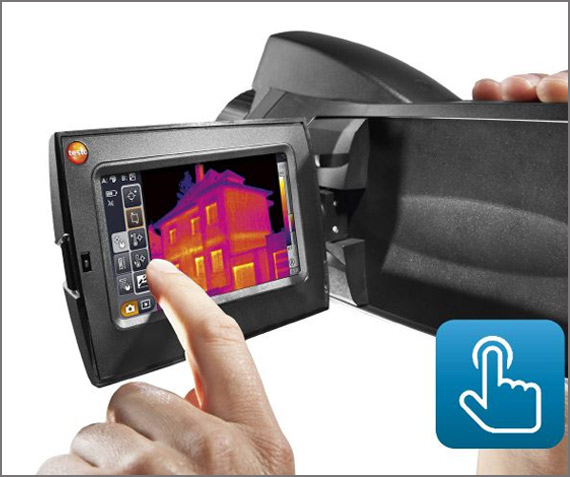

4.3" LCD touchscreen with 480 x 272 pixels

Digital zoom

1x

Display option

IR image / real image

Colours

9 (iron, rainbow, rainbow HC, cold-hot, blue-red, grey, inverted grey, sepia, Testo)

Video output

USB 2.0, Micro HDMI

Imager equipment

Power-LED

Included

Process analysis package

Optional

JPEG storage

yes

Video streaming

via HDMI

Video measurement

up to 3 measurement points

Voice recording

Bluetooth****/wired headset

Panorama image assistant

Included

SiteRecognition

Included

Standard lens

5° x 3.7°

Digital camera

Included

Interface

Labview; Bluetooth®; USB 2.0; via HDMI

Bluetooth

Connection to the radio humidity probe and the Bluetooth® headset

Fever detection

Optional

Laser

Laser marker

**** Bluetooth only in the EU, Norway, Switzerland, USA, Canada, Colombia, Turkey, Japan, Russia, Ukraine, India, Australia

Imager storage

File format image

.bmt; export option in .bmp; .jpg; .png; .csv; .xls

File format video

.wmv; .mpeg-1

Storage device

SD card 2GB (approx. 1500 - 2000 images)

Infrared image output

Spectral range

7.5 to 14 µm

Infrared resolution

320 x 240 pixels

Thermal sensitivity

˂ 30 mK at +30 °C

Field of view

5° x 3,7° (super-telephoto lens)

Minimum focus distance

2 m (Super-telephoto lens)

Geometric resolution (IFOV)

0.27 mrad (super-telephoto lens)

SuperResolution (Pixel)

640 x 480 pixels

SuperResolution (IFOV)

0.17 mrad (Super-telephoto lens)

Image refresh rate

33 Hz

Focus

auto / manual

*inside the EU, outside 9 Hz

Measurement

Measuring range

-30 to +100°C; 0 to +350 °C (switchable); 0 to +650 °C (switchable)

High temperature measuring

+350 ... +1200 °C (not in connection with the telephoto lens)

Accuracy

±2 °C, ±2 % of m.v.

Emissivity

0.01; 1

Reflected temperature

manual

Transmission correction

Included

Accuracy high temperature

±2 °C, ±2 % of m.v.

Measuring function

Surface moisture distribution

Included

Humidity measurement

Optional

Solar mode – manual

Included

Analysis function

up to 10 measurement points, Hot/Cold Spot Recognition, up to 5 x area measurement (min/max & average), Isotherm and alarm values

Humidity measurement with humidity measuring instrument

with radio humidity probe; Automatic measurement value transfer of thermohygrometer testo 605i via Bluetooth (instrument must be ordered separately); Wireless permit in EU, EFTA, USA, Canada, Australia, Turkey; *Wireless humidity probes only in the EU, Norway, Switzerland, USA, Canada, Colombia, Turkey, Brazil, Chile, Mexico, New Zealand, Indonesia; Not included

PC software

System requirements

Windows 10; Windows 8; Windows 7 (Service Pack 1)

Physical specification

Dimensions

253 x 132 x 111 mm

Weight

1570 g

Tripod mounting

1/4" - 20UNC

Product-/housing material

Plastic

Power supply

Battery type

Fast-charging, Li-ion battery can be changed on-site

Operating time

4.5 h

Mains operation

yes

Termovisores garantia

EU-/EG-guidelines

2004/108/EG

General technical data

Product colour

Black

Display ligthing

bright / normal / dark
