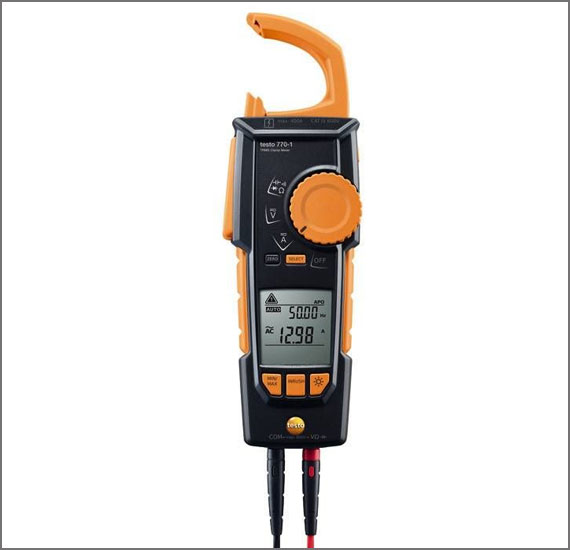

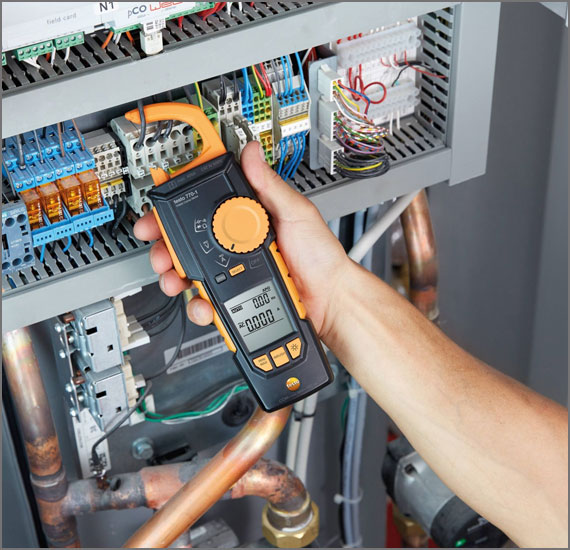

The testo 770-1 clamp meter is ideally suited for non-contact current measurement on tightly packed power cables or conductors with a small diameter. The unique grab mechanism means you can grab each individual cable easily and safely.
Combined with a smartphone or tablet, the testo 115i clamp thermometer is the ideal temperature measuring instrument for carrying out servicing and troubleshooting on refrigeration, air conditioning and heating systems, as well as for installing them. It can also be used to measure flow and return temperatures.
The testo 770-1 clamp meter is ideally suited for non-contact current measurement on tightly packed power cables or conductors with a small diameter. The unique grab mechanism means you can grab each individual cable easily and safely.
DC voltage | |
---|---|
Measuring range | 1.0 to 600.0 V |
Resolution | max. 1 mV |
Accuracy | ± (0.8 % of mv + 3 Digit) |
AC voltage | |
---|---|
Measuring range | 1.0 mV to 600.0 V |
Resolution | max. 1 mV |
Accuracy | ± (1.0 % of mv + 3 Digit) |
DC current | |
---|---|
Measuring range | 0.1 to 400 A |
Resolution | max. 0.1 |
Accuracy | ± (2 % of mv + 5 Digit) |
AC current | |
---|---|
Measuring range | 0.1 to 400 A |
Resolution | max. 0.1 A |
Accuracy | ± (2 % of mv + 5 Digit) |
Resistance | |
---|---|
Resolution | max. 0.1 Ohm |
Measuring range | 0.1 to 40.00 MOhm |
Accuracy | ± (1.5 % of mv + 3 Digit) |
Capacitance | |
---|---|
Resolution | max. 0.01 nF |
Measuring range | 10 nF to 100.0 μF |
Accuracy | ± (1.5 % of mv + 5 Digit) |
Frequency | |
---|---|
Measuring range | 10 nF to 100.0 μF |
Accuracy | ±(0.1 % + 1 Digit) |
General technical data | |
---|---|
Operating humidity | 0 to 80 %RH |
Weight | 378 g |
Dimensions | 249 x 96 x 43 mm |
Operating temperature | -10 to +50 °C |
Product colour | Black |
Standards | EN 61326-1; EN 61010-2-032; EN 61140 |
Battery type | 3 AAA micro batteries |
Display type | LCD |
Display size | 2 lines |

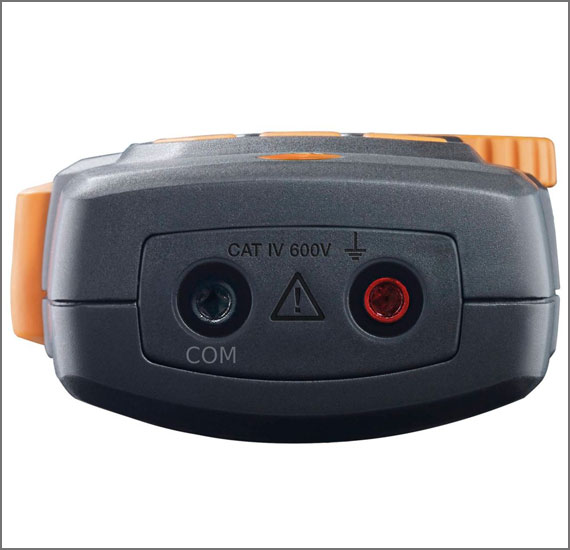

Interface | 2 measuring jacks |
Storage temperature | -15 to +60 °C |
Overvoltage Category | CAT IV 600V; CAT III 1000V |
Authorizations | CSA; CE |
Internal_resistance | 11 MOhm (AC / DC) |
Instrument Measurement Functions | |
---|---|
Diode test | yes |
Continuity testing | yes |
Display ligthing | yes |
Hold | yes |
MinMax | yes |
True RMS | yes |
Inrush current measurement | yes |
Display (counts) | 4,000 |
Autom. measurement parameter detection | yes |
