IR Camera

Item Code : Testo 882

The testo 882 IR Camera is the most precise one-hand thermal imaging camera with pistol grip design from Testo. Special measuring modes including moisture image or high temperature option make it ideal for a wide variety of different applications.

Item Features :

  • Easy, one-handed operation for quick and easy thermal imaging

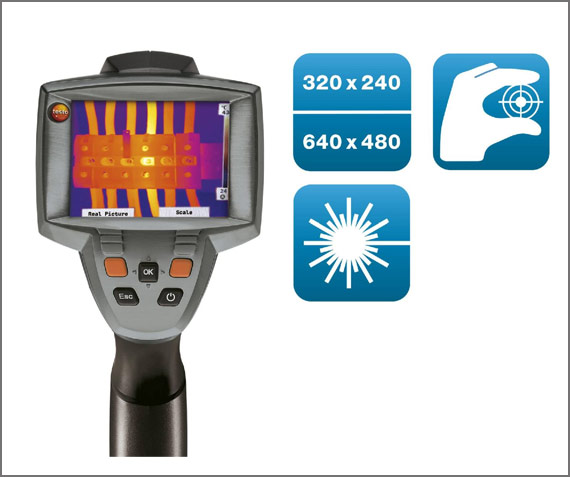

  • Premium image quality: thermal image resolution 320 x 240 pixels / 640 x 480* pixels
  • Precise measurements: thermal sensitivity < 50 mK
  • 32°lens, automatic hot/cold spot recognition

Price on request

GST and accessories extra.
Qty
  • USP's
  • Technical data
  • Downloads

Product Description

Crisp and clear thermal images taken from a wide angle; parallel digital real images of the same measuring object with manual or motor-driven focusing. The testo 882 IR camera gives you this and much more. In fact, it gives you everything you need to take, document and analyse the thermal images of the object you have measured.

Areas of use for the testo 882 IR Camera

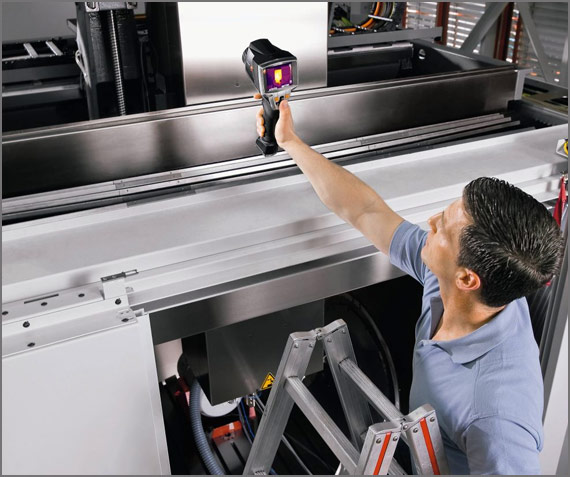

Quality control in the building sector and water damage restoration, maintenance of mechanical and electrical installations, precise high-temperature measurements, prevention of mould, energy management advice. The testo 882 IR camera has all the features you need to carry out a wide range of different thermal imaging tasks.
The impressive details of the testo 882 IR Camera
•  76 800 temperature measuring points for precise thermal imaging and crisp, clear images: Infrared resolution 320 x 240 pixels
•  *SuperResolution technology (optional) that enhances the image quality to 640 x 480 pixels

•  Thermal sensitivity <50 mK for measuring even the smallest temperature differences

•  32° lens for quick and easy coverage of larger image sections, can be focused manually or with motor

•  Automatic hot/cold spot recognition for instant critical temperature depiction

•  Built-in digital camera with power LEDs for parallel real and thermal images

•  Free IRSoft PC software for professional analysis of thermal images. TwinPix technology for overlapping images on your PC monitor. Ideal for allocating thermal images, documenting results and for planning further measures

•  Voice annotations via headset

•  Intuitive, one-handed operation for quick and easy thermal imaging

Special measuring modes for even more precise thermal imaging

Special measuring modes and functions broaden your measuring spectrum and provide even more precise measurements for faster results:
•  Solar mode for identifying faults at photovoltaic systems: enter the externally measured radiation intensity of the sun at the point in time at which the image was taken into the camera. This value is saved alongside each of the thermal images to allow correct comparisons to be made
•  Special measuring mode for detecting places where there is a risk of mold: the infrared camera can use the externally measured ambient temperature and humidity and the surface temperature to calculate the moisture value of each measuring point and depict it as a real moisture image
•  High temperature option: the measuring range can be increased to 550°C for even more flexibility
Thermal imaging analysis on your PC

The thermal and digital images you have taken can be transferred from your infrared camera to your PC via SD card or USB cable. The IRSoft pro PC software included in the scope of delivery allows you to carry out a quick and reliable analysis of your images. The TwinPix Technology allows you to overlap real and thermal images to create a combined image which can be analysed more easily and efficiently.

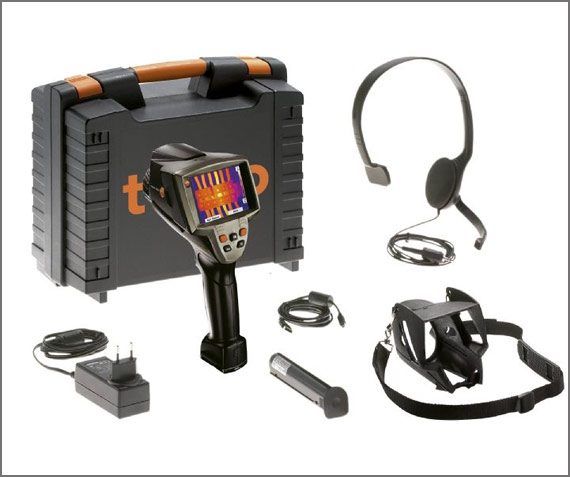

Delivery Scope

  • testo 882 infrared camera with thermal resolution 320 x 240 pixels
  • Rugged case
  • Pro software IRSoft (free download)
  • Soft case
  • Shoulder strap
  • SD card
  • USB cable
  • Power adaptor
  • Li-ion battery
  • Adapter for tripod mount
  • Lens cloth
  • Headset
Termovisores garantia

EU-/EG-guidelines

2004/108/EG

Infrared image output

Infrared resolution

320 x 240 pixel

Thermal sensitivity

<50 mK at +30 °C

Field of view

32° x 23°

Minimum focus distance

0.2 m

Geometric resolution (IFOV)

1.7 mrad

SuperResolution (Pixel)

640 x 480 pixels

SuperResolution (IFOV)

1.1 mrad

Image refresh rate

33 Hz

Focus

manual and motor focus

Image output visual

Image size

640 x 480 pixels

Minimum focus distance

0.4 m

Image presentation

Display type

3.5" LCD with 320 x 240 pixels

Display option

IR image only; real image only; IR image / real image

Colours

10 (iron, rainbow, rainbow HC, cold-hot, blue-red, grey, inverted grey, sepia, Testo, iron HT)

Video output

USB 2.0

Measurement

Measuring range

-20 to +100°C; 0 to +350 °C (switchable)

High temperature measuring

+350 to +550 °C

Accuracy

±2 °C,; ±2% of mv / (±3% of mv at +350 to +550 °C)

Reflected temperature

manual

Measurement

Measuring function

Surface moisture distribution

Included

Humidity measurement

Optional

Solar mode – manual

Included

Analysis function

Up to 2 measurement points, hot/cold spot recognition, isotherms, area measurement (min/max on area)

Imager equipment

Power-LED

Included

Video streaming

Included

Voice recording

wired headset

Standard lens

32° x 23°

Digital camera

Included

Laser

Included

Imager storage

File format image

.bmt; export option in .bmp; .jpg; .png; .csv; .xls

Storage device

SD card 2 GB (approx. 1.000 images)

Power supply

Battery type

Fast-charging, Li-ion battery can be changed on-site

Operating time

4.0 h

Charging options

In instrument / charger (optional)

Mains operation

yes

Ambient Condition

Storage temperature

-30 °C; 60 °C

Operating temperature

-15 °C; 40 °C

Air humidity

20 to 80 %RH non-condensing

Housing protection class

IP54

Vibration

2G

Physical specification

weight (without package)

900 g

Tripod mounting

M6

Product-/housing material

ABS

Dimensions

152 x 108 x 262

PC software

System requirements

Windows XP (Service Pack 3); Windows Vista; Windows 7 (Service Pack 1); Windows 8; Interface: USB 2.0
