The professional and compact testo 549i high-pressure gauge can be controlled via the testo Smart App using your smartphone or tablet, and is ideal for carrying out servicing and troubleshooting on air conditioning and refrigeration systems. The App also enables evaporation and condensation temperatures to be calculated automatically.
-
Call us anytime
(+91) 7767817731
-
Email us now
info@gsesindia.in
-
Call us anytime
(+91) 7767817731
-
Email us now
info@gsesindia.in
High-Pressure Gauge
- Measurement of high and low pressure
- Low refrigerant loss – since no hoses are required for measurements
- Measurement data displayed in the form of a graph or table, and sent via testo Smart Probes App

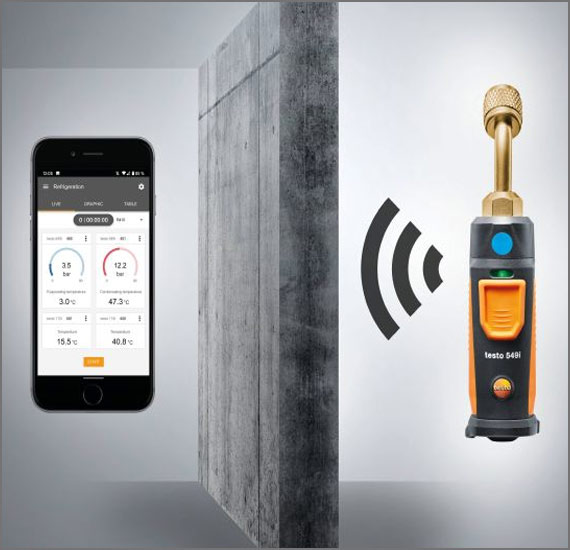

- Problem-free application at measuring points that are a long distance apart thanks to Bluetooth® range up to 100 m
Delivery Scope
1 x testo 549i high-pressure gauge operated via smartphone, including batteries and calibration protocol.
*Our tip: Use the testo 549i as a probe in conjunction with the appropriate IAQ measuring instrument from Testo.
Rs. 11,751.00
GST and accessories extra.Qty
| Pressure measurement | |
|---|---|
|
Measuring range |
-1 to +60 bar |
|
Accuracy |
±0.5 % of fsv |
|
Resolution |
0.01 bar |
|
Probe connection |
7 / 16 " - UNF |
|
Overload rel. (high pressure) |
+65 bar |
| General technical data | |
|---|---|
|
Weight |
156.6 g |
|
Dimensions |
125 x 32 x 31 mm |
|
Operating temperature |
-20 to +50 °C |
|
Product-/housing material |
Plastic |
|
System requirements |
requires iOS 11.0 or newer; requires Android 6.0 or newer; requires mobile end device with Bluetooth 4.0 |
|
Product colour |
black/orange |
|
Battery type |
3 AAA micro batteries |
|
Battery life |
130 h |
|
Data transfer |
Bluetooth® |
|
Radio range |
100 m |
|
Pressure media |
CFC, HFC, HCFC, N, H₂O, CO₂ |
|
Storage temperature |
-20 to +60 °C |
