Vane anemometer with App connection

Item Code : Testo 416

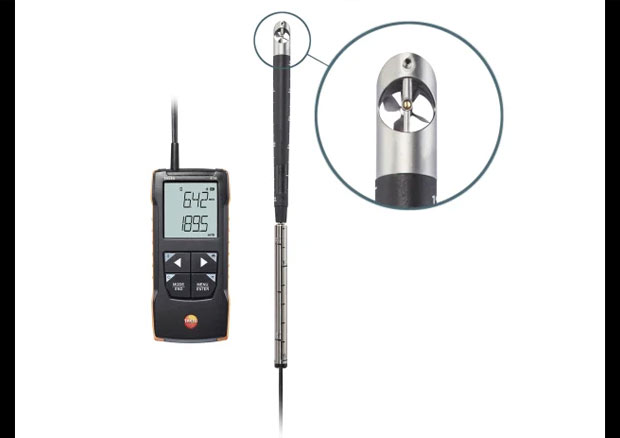

With the compact 16 mm vane anemometer testo 416 with telescopic probe and App connection, you can carry out flow measurements in the ventilation ducts of air conditioning and ventilation systems easily, quickly and precisely.

Advantages

  • Simple, fast and precise flow measurement and volume flow calculation in the ventilation duct
  • More flexibility for duct measurements with the cable-connected telescopic probe (maximum length 850 mm)
  • Fast in-app (duct) configuration, graph history, second screen and measurement data memory in the testo Smart App
  • Timed and point mean value calculation

Price On Request

0
Qty
  • USP's
  • Technical data
  • Downloads

Description

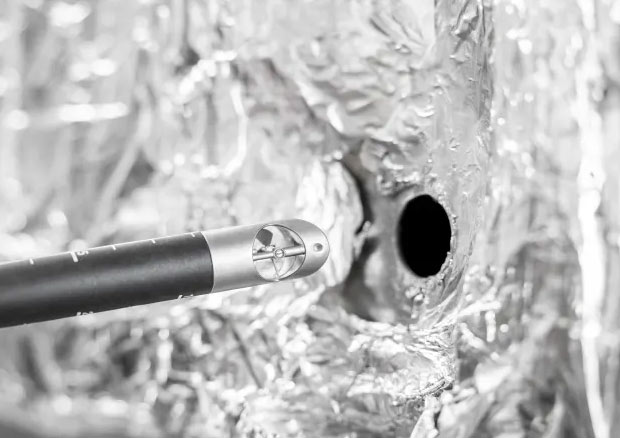

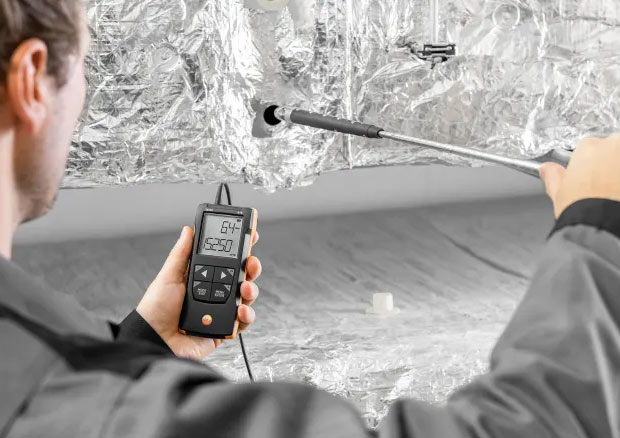

With the compact 16 mm vane anemometer testo 416 with telescopic probe and App connection, you can carry out flow measurements in the ventilation ducts of air conditioning and ventilation systems easily, quickly and precisely. The integrated telescope can be extended up to 850 mm, making it easier to work overhead or in large diameter ducts. To ensure that you have all the relevant information at your fingertips, the testo 416 automatically calculates time and point average values as well as the volume flow rate. And thanks to the compact design and the robust housing, the vane anemometer can also stand it if conditions get a little rougher at times. Configuration of the measuring instrument, display and storage of measured values as well as documentation are all particularly convenient with the testo Smart App. This also turns your smartphone into a second display.

Delivery Scope

  • Simple, fast and precise flow measurement and volume flow calculation in the ventilation duct
  • More flexibility for duct measurements with the cable-connected telescopic probe (maximum length 850 mm)
  • Fast in-app (duct) configuration, graph history, second screen and measurement data memory in the testo Smart App
  • Timed and point mean value calculation

Technical Data
Velocity - Vane
Measuring range

0.6 to 40 m/s

Accuracy

±(0.2 m/s + 1.0 % of mv)

Resolution

0.1 m/s

General technical data
Weight

323 g

Dimensions

135 x 60 x 28 mm

Operating temperature

-10 to +50 °C

Probe: -10 to +70 °C

Product-/housing material

ABS + PC / TPE

Diameter probe shaft

16 mm

Cable length

1.5 m

Protection class

IP40

IP20

Length probe

329 mm

Battery type

3x AA

Battery life

60 h

Storage temperature

-10 to +50 °C
