TThe testo 760-3 digital multimeter is the multitasker for all important professionals in the electricity sector. It enables you to carry out both simple and demanding electrical measuring tasks more reliably than ever before. The testo 760-3 automatically detects the appropriate measurement parameter via the socket assignment and so prevents dangerous incorrect settings. A voltage range of up to 1,000 V, a frequency range of up to 30 MHz and capacitance of up to 60,000 µF mean the testo 760-3 multimeter can also be used for industrial applications, such as troubleshooting in large electrical systems. And the integrated low-pass filter achieves more accurate measurement results on frequency converter controlled motors. Temperatures can also be measured with this multimeter in addition to electrical parameters. You will need the clip-on type K thermocouple adapter and a temperature probe (both items can be ordered separately).
-
Call us anytime
(+91) 7767817731
-
Email us now
info@gsesindia.in
-
Call us anytime
(+91) 7767817731
-
Email us now
info@gsesindia.in
Digital multimeter
Rs.27,160.00/-
GST and accessories extra.Qty
Easy, reliable work thanks to automatic measurement parameter detection

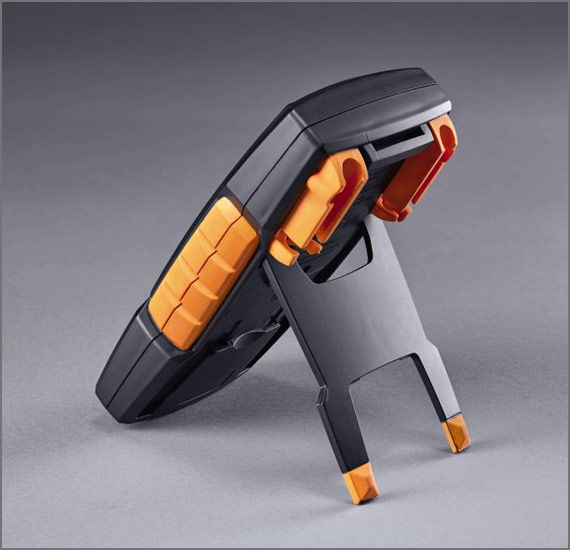

Comfortable, one-handed operation without any dial
Easy, reliable work thanks to automatic measurement parameter detection
Additional functions, such as true root mean square measurement - TRMS, low-pass filter and temperature adapterA range
Easy, reliable work thanks to automatic measurement parameter detection
Low-pass filter for accurate measurement results on frequency converter controlled motors.
Item Features :
- Easy, reliable work thanks to automatic measurement parameter detection
- Comfortable, one-handed operation without any dial
- Voltage range up to 1,000 V
- Additional functions, such as true root mean square measurement - TRMS, low-pass filter and temperature adapter
| Temperature - TC Type K (NiCr-Ni) | |
|---|---|
Measuring range |
-20 to +500 °C |
Accuracy |
±1 °C (0 to +100 °C) |
Resolution |
0.2 °C |
| DC voltage | |
|---|---|
Measuring range |
0.1 to 1000 V |
Resolution |
max. 0.1 mV |
Accuracy |
± (0.8 % of mv + 3 Digit) |
| AC voltage | |
|---|---|
Measuring range |
0.1 mV to 1000 V |
Resolution |
max. 0.1 mV |
Accuracy |
± (1.0 % of mv + 3 Digit) |
| DC current | |
|---|---|
Measuring range |
0.1 μA to 10 A |
Resolution |
max. 0.1 |
Accuracy |
± (1.5 % of mv + 5 Digit) |
| AC current | |
|---|---|
Measuring range |
0.1 μA to 10 A |
Resolution |
max. 0.1 μA |
Accuracy |
± (1.5 % of mv + 5 Digit) |
| Resistance | |
|---|---|
Resolution |
max. 0.01 Ohm |
Measuring range |
0.01 to 60.00 MOhm |
Accuracy |
± (1.5 % of mv + 3 Digit) |
| Capacitance | |
|---|---|
Resolution |
max. 0.01 nF |
Measuring range |
0.001 nF to 60000 μF |
Accuracy |
± (1.5 % of mv + 5 Digit) |
| Frequency | |
|---|---|
Resolution |
max. 0.1 Hz |
Measuring range |
0.001 Hz to 60.00 MHz |
Accuracy |
± (0.1 % of mv + 1 Digit) |
| General technical data | |
|---|---|
Operating humidity |
0 to 80 %RH |
Weight |
340 g |
Dimensions |
167 x 85 x 45 mm |
Operating temperature |
-10 to +50 °C |
Product colour |
Black |
Connectable probes |
1 x temperature probe (adapter required for type K thermocouples) |
Protection class |
IP64 |
Standards |
EN 61326-1; EN 61010-2-033; EN 61140 |
Battery type |
3 AAA micro batteries |
Display type |
LCD |
Display size |
2 lines |
Interface |
4 measuring jacks |
Storage temperature |
-15 to +60 °C |
Overvoltage Category |
CAT IV 600V; CAT III 1000V |
Authorizations |
CE; CSA |
Internal_resistance |
11 MOhm (AC / DC) |
| Instrument Measurement Functions | |
|---|---|
Diode test |
yes |
Continuity testing |
yes |
Current probe measurement with adapter |
yes |
Display ligthing |
yes |
Hold |
yes |
MinMax |
yes |
Temperature measurement with adapter |
yes |
True RMS |
yes |
Low-pass filter |
yes |
Duty cycle measurement |
yes |
Display (counts) |
6,000 |
μA current measuring range |
yes |
Autom. measurement parameter detection |
yes |
