Thermal Camera

Item Code : Testo 872

The testo 872 thermal imager gives you the best possible support for your work in professional industrial and building thermography. Take thermal images quickly, reliably and smartly with the highest image quality, very good thermal sensitivity and innovative functions. The case supplied with the thermal imager means it can be conveniently transported, so it is always there for you when needed.

Item Features :

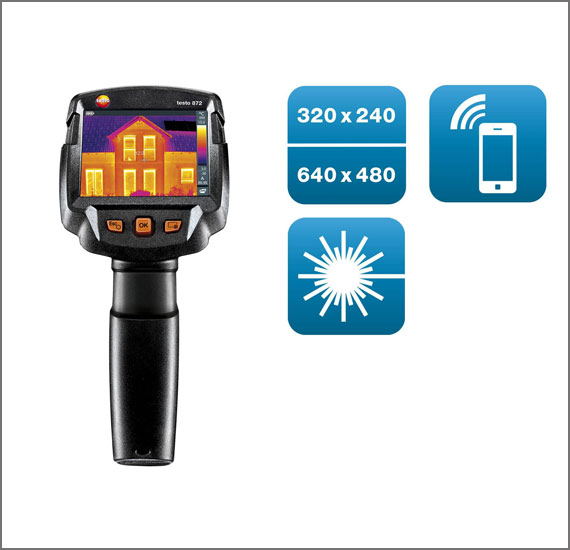

  •  Highest image quality: IR resolution of 320 x 240 pixels, via integrated testo SuperResolution Technology 640 x 480 pixels
  •  Precise measurement: thermal sensitivity of 0.06°C

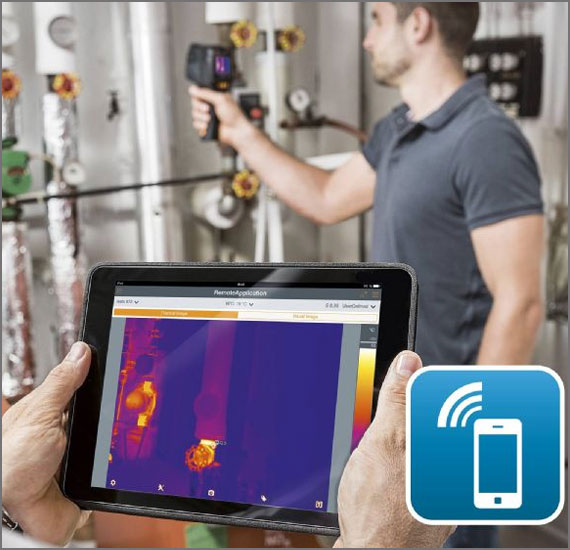

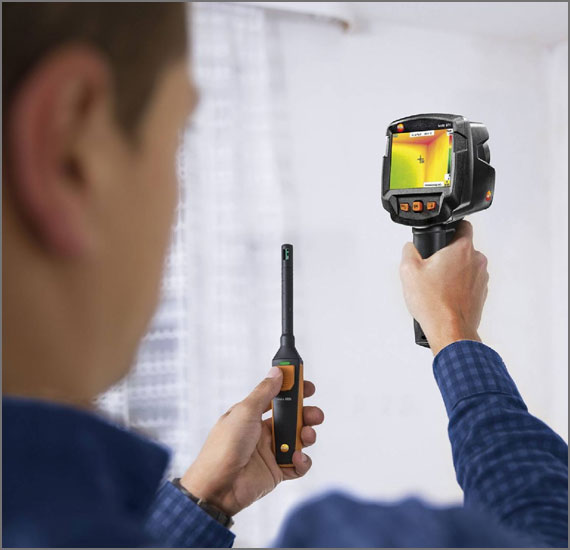

  •  Smart and wireless: use your mobile device with the free testo Thermography App and wirelessly transmit readings from the testo 770-3 clamp meter and the testo 605i humidity measuring instrument (both available separately)
  •  Integrated laser marker – can also be precisely visualized as a measuring point in the thermal image

Rs. 345,970

GST and accessories extra.
Qty
  • USP's
  • Technical data
  • Downloads

The testo 872 thermal imager gives you the best possible support for your work in professional industrial and building thermography. Take thermal images quickly, reliably and smartly with the highest image quality, very good thermal sensitivity and innovative functions. The case supplied with the thermal imager means it can be conveniently transported, so it is always there for you when needed.

Item Features :

  • Highest image quality: IR resolution of 320 x 240 pixels, via integrated testo SuperResolution Technology 640 x 480 pixels
  • Precise measurement: thermal sensitivity of 0.06°C
  • Smart and wireless: use your mobile device with the free testo Thermography App and wirelessly transmit readings from the testo 770-3 clamp meter and the testo 605i humidity measuring instrument (both available separately)
  •  Integrated laser marker – can also be precisely visualized as a measuring point in the thermal image
Ambient Condition

Operating temperature

-15 to +50 °C

Storage temperature

-30 to +60 °C

Air humidity

20 to 80 %RH non-condensing

Housing protection class

IP54

Vibration

2G

Image output visual

Image size

at least 3.1 MP

Minimum focus distance

0.5 m

Image presentation

Display type

8.9 cm (3.5") TFT, QVGA (320 x 240 pixels)

Digital zoom

2x; 4x

Display option

IR image / real image

Colours

10 (iron, rainbow, rainbow HC, cold-hot, blue-red, grey, inverted grey, sepia, Testo, iron HT)

Imager equipment

Full screen mode

Included

JPEG storage

Included

Video streaming

via Wi-Fi with testo Thermography App

Standard lens

42° x 30°

Digital camera

Included

Interface

USB 2.0 Micro B

WLAN Connectivity

Communication with the testo Thermography App wireless module Bluetooth/Wi-Fi (EU, EFTA, USA, AUS, CDN, TR)

Bluetooth

Measurement value transfer from thermohygrometer testo 605i, clamp meter testo 770-3 (optional); Wireless permit in EU, EFTA, USA, Canada, Australia, Turkey

Laser

Laser marker

Imager storage

File format image

.bmt; .jpg; export option in .bmp; .jpg; .png; .csv; .xls

Storage device

Internal Memory (2.8 GB)

Infrared image output

Spectral range

7.5 to 14 µm

Infrared resolution

320 x 240 pixel

Thermal sensitivity

60 mK

Field of view

42° x 30°

Minimum focus distance

<0.5 m

Geometric resolution (IFOV)

2.3 mrad

SuperResolution (Pixel)

640 x 480 pixels

SuperResolution (IFOV)

1.3 mrad

Image refresh rate

9 Hz

Focus

Fixed focus

Measurement

Measuring range

-30 to +100°C; 0 to +650°C

Accuracy

±2 °C, ±2 % of m.v.

Emissivity

0.01 to 1

Reflected temperature

manual

testo ε-Assist

Included

Measuring function

Solar mode – manual

Input solar radiation

Analysis function

Mean point measurement, hot/cold-spot recognition, Delta T, area measurement (min-max on area)

Electrical mode - manual

Input current voltage power

IFOV warner

Included

Humidity mode - manual

Included

testo ScaleAssist

Included

Humidity measurement with humidity measuring instrument

Automatic measurement value transfer of thermohygrometer testo 605i via Bluetooth (instrument must be ordered separately); Wireless permit in EU, EFTA, USA, Canada, Australia, Turkey

Electrical measurement with clamp meter

Automatic measurement value transfer of clamp meter testo 770-3 via Bluetooth (instrument must be ordedered separately); Wireless permit in EU, EFTA, USA, Canada, Australia, Turkey

PC software

System requirements

Windows 10; Windows 8; Windows 7

Physical specification

Dimensions

219 x 96 x 95 mm

Weight

510 g

Product-/housing material

PC - ABS

Power supply

Battery type

Fast-charging, Li-ion battery can be changed on-site

Operating time

4.0 h

Mains operation

yes

Charging options

In instrument / charger (optional)

Termovisores garantia

EU-/EG-guidelines

RED: 2014/53/EU; EMC: 2014/30/EU

General technical data

Product colour

Black

Display ligthing

bright / normal / dark
