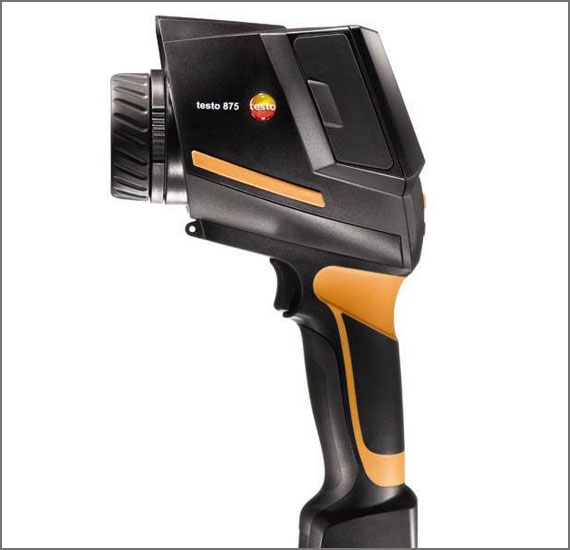

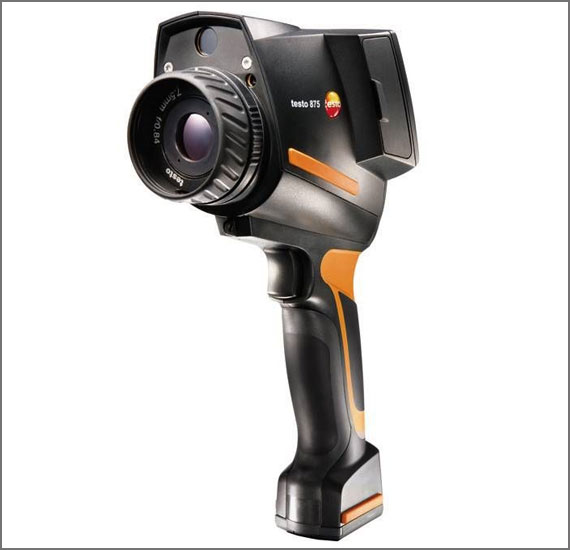

Thermal Digital Camera

Item Code : testo 875-2i

With the testo 875-2i high temperature thermal imager, you can do your industrial and building thermography work even more easily and quickly: The built-in digital camera and voice recording via the headset make documentation and assignment of thermal and real images easier.

Item Features :

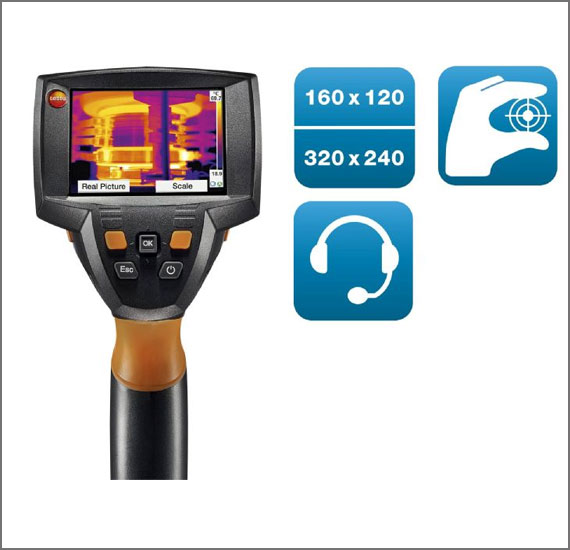

  • Very good image quality: Resolution 160 × 120 pixels / 320 × 240* pixels
  • Thermal sensitivity < 50 mK
  • high-quality 32° × 23° lens, automatic hot/cold spot detection and optional temperature measurement up to +550 °C
  • Including a built-in digital camera and voice recording via a headset

Price on request

GST and accessories extra.
Qty
  • USP's
  • Technical data
  • Downloads

Product Description

We developed the testo 875-2i thermal imager with built-in digital camera to make your work in industrial and building thermography even easier, quicker and more efficient!
You can carry out completely non-destructive tests on materials and components in industrial thermography with the testo 875-2i. This high temperature thermal imager gives an option to extend the measuring range from +350 °C to +550 °C. Using the built-in digital camera, you can create a real image in parallel to the thermal image. So as to make the documentation and assignment of real and thermal images even easier for you, the testo 875-2i thermal imager is also equipped with voice recording. This means you can save comments to go with your images using the headset.

The testo 875-2i thermal imager’s technical features

  • The testo 875-2i thermal imager is not only characterised by its intuitive operation. It also simplifies professional industrial and building thermography and has the following impressive features:
  • Standard measuring range from -30 to +350 °C. The high temperature option enables flexible extension of the measuring range for industrial thermography up to +550 °C
  • Delivery Scope

    The testo 875-2i thermal imager with digital camera is supplied together with the following accessories:
    • Robust case
    • Pro software IRSoft (free download)
    • Soft case
    • Carrying strap for the Infrared camera
    • SD memory card
    • USB cable for data transfer to PC
    • Lens cleaning cloth
    • Mains unit
    • Li-ion battery
    • Adapter for tripod mounting
    • Headset for voice recording

    In the event of retrofitting, please contact our customer service for the following options:
    • 9° × 7° telephoto lens (order code: A1)
    • High temperature measurement up to 550 °C (order code: G1)
    • Humidity measurement with radio humidity probe (order code: B1)

    Ambient Condition

    Storage temperature

    -30 °C; 60 °C

    Operating temperature

    -15 °C; 40 °C

    Air humidity

    20 to 80 %RH non-condensing

    Housing protection class

    IP54

    Vibration

    2G

    Image output visual

    Image size

    640 x 480 pixels

    Minimum focus distance

    0.4 m

    Image presentation

    Display type

    3.5" LCD with 320 x 240 pixels

    Display option

    IR image only; real image only; IR image / real image

    Number of colours

    10

    Colours

    10 (iron, rainbow, rainbow HC, cold-hot, blue-red, grey, inverted grey, sepia, Testo, iron HT)

    Video output

    USB 2.0

    Imager equipment

    Power-LED

    Included

    Video streaming

    Included

    Voice recording

    wired headset

    Exchangeable lenses

    9° x 7°

    Standard lens

    32° x 23°

    Digital camera

    Included

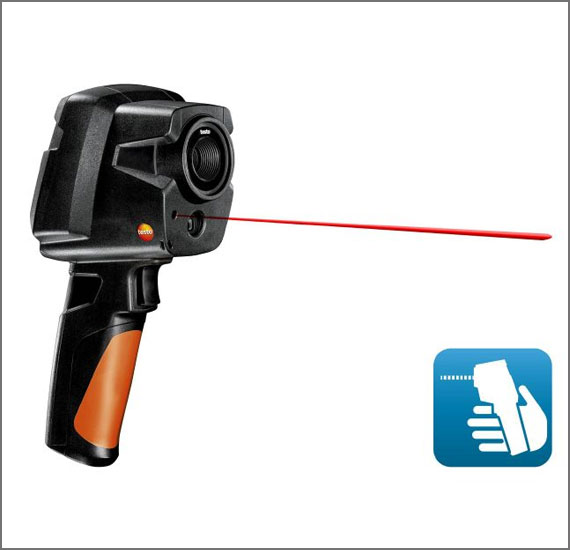

    Laser

    Included

    Imager storage

    File format image

    .bmt; export option in .bmp; .jpg; .png; .csv; .xls

    Storage device

    SD card 2GB (approx. 2.000 images)

    Infrared image output

    Infrared resolution

    160 x 120 pixels

    Thermal sensitivity

    ˂ 50 mK at +30 °C

    Field of view

    32° x 23°

    Minimum focus distance

    0.1 m (Tele: 0.5 m)

    Geometric resolution (IFOV)

    3.3 mrad (Tele: 1.0 mrad)

    SuperResolution (Pixel)

    320 x 240 pixels

    SuperResolution (IFOV)

    2.1 mrad (Tele: 0.6 mrad)

    Image refresh rate

    9 Hz

    Focus

    manual

    Measurement

    Measuring range

    -30 to +100°C; 0 to +350 °C (switchable)

    High temperature measuring

    +350 to +550 °C

    Accuracy

    ±2 °C, ±2 % of m.v. (±3 °C of m.v. at -30 to -22 °C)

    Reflected temperature

    manual

    Accuracy high temperature

    ±3 % of m.v. at +350 to +550 °C

    Measuring function

    Surface moisture distribution

    Included

    Humidity measurement

    Optional

    Solar mode – manual

    Included

    Analysis function

    Up to 2 measurement points, hot/cold spot recognition, isotherms, area measurement (min/max on area)

    PC software

    System requirements

    Windows XP (Service Pack 3); Windows Vista; Windows 7 (Service Pack 1); Windows 8; Interface: USB 2.0

    Physical specification

    Dimensions

    152 x 108 x 262

    weight (without package)

    900 g

    Tripod mounting

    M6

    Product-/housing material

    ABS

    Power supply

    Battery type

    Fast-charging, Li-ion battery can be changed on-site

    Operating time

    4.0 h

    Charging options

    In instrument / charger (optional)

    Mains operation

    yes

    Termovisores garantia

    EU-/EG-guidelines

    2004/108/EG
