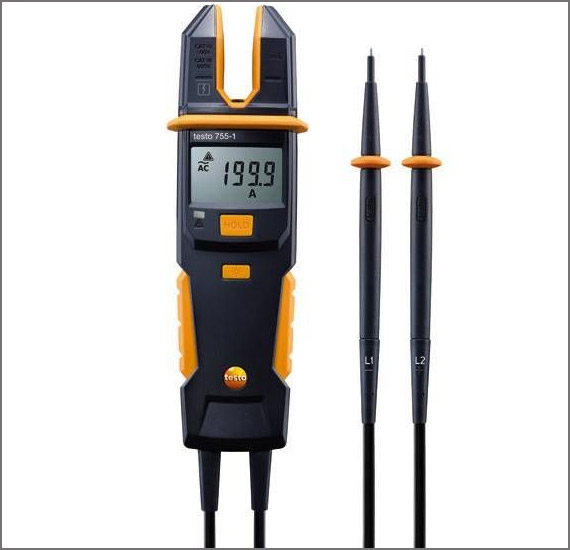

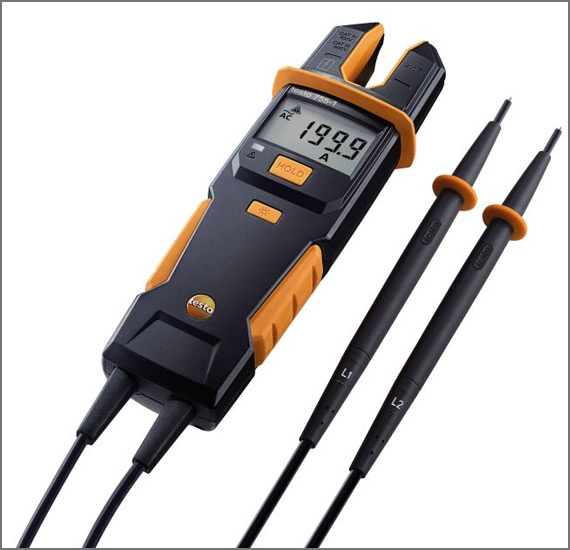

Current/voltage tester

Item Code : testo 755-1

The first voltage tester with current measurement is here: the testo 755-1. You can test electrical circuits or systems for voltage or de-energization, measure flow of current or current consumption and carry out continuity tests using a single instrument. In the process, the testo 755-1 voltage tester detects and selects all the electrical parameters automatically: you can just start measuring – without any switching on or selection. The measuring tips, which can be quickly and simply exchanged, are also particularly user-friendly. This means you do not need to replace the whole instrument straight away in the event of damage. Just as practical: the integrated torch for illuminating dark measuring points. The testo 755-1 current/voltage tester is a genuine allrounder which will make your day-to-day work easier.

Rs. 17,620.00/-

GST and accessories extra.
Qty
  • USP's
  • Technical data
  • Downloads

Measuring current with a voltage tester? The innovative testo 755-1 makes this possible – and is therefore suitable for virtually all daily electrical measuring tasks. The practical automated switch-on function and automatic measurement parameter detection also mean you can work more reliably than ever before with it.

Item Features :
  • Easy, reliable operation through automatic measurement parameter detection
  • DIN EN 61243-3:2014 and DIN EN 61010‑1:2011 certified
  • Exchangeable measuring tips
  • Suitable for almost all electrical measuring tasks
DC voltage

Measuring range

6 to 600 V

Resolution

max. 0.1 V

Accuracy

± (1.5 % of mv + 3 Digit)

AC voltage

Measuring range

6 to 600 V

Resolution

max. 0.1 V

Accuracy

± (1.5 % of mv + 3 Digit)

AC current

Measuring range

0.1 to 200 A

Resolution

max. 0.1 A

Accuracy

± (3 % of mv + 3 Digit)

Resistance

Resolution

max. 1 Ohm

Measuring range

30 to 100 kOhm

Accuracy

± (1.0 % of mv + 5 Digit)

General technical data

Operating humidity

0 to 75 %RH

Weight

320 g

Dimensions

199 x 62 x 40 mm

Operating temperature

-10 to +50 °C

Product colour

Black

Protection class

IP64

Standards

EN 61243-3; EN 61010-1

Battery type

2 AAA micro batteries

Display type

LCD

Display size

one-line

Storage temperature

-15 to +60 °C

Overvoltage Category

CAT IV 600V; CAT III 1000V

Authorizations

CSA; CE

Instrument Measurement Functions

Continuity testing

yes

Display ligthing

yes

Hold

yes

Measuring point illumination

yes

Display (counts)

4,000

Autom. measurement parameter detection

yes
