Thermal imager-890

Item Code : Testo 890

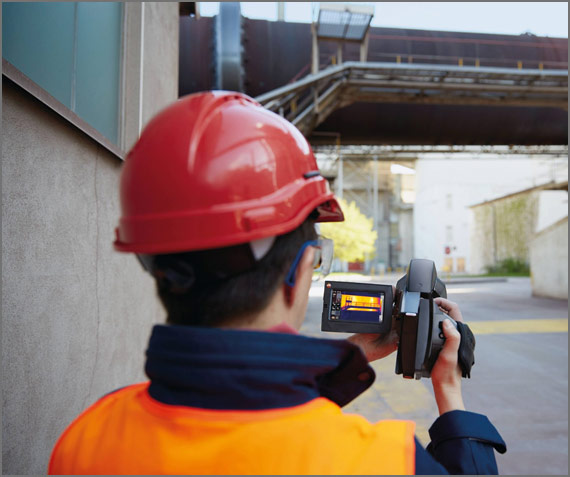

The testo 890 thermal imager with super-telephoto lens means you are ideally equipped for professional thermography involving long measuring distances: e.g. for inspecting high-voltage lines – even the smallest of connections can be thoroughly checked from greater distances. You can also pinpoint hotspots on defective cells in large solar parks or visualize irregularities in large industrial plants (e.g. in refineries).

Item Features :

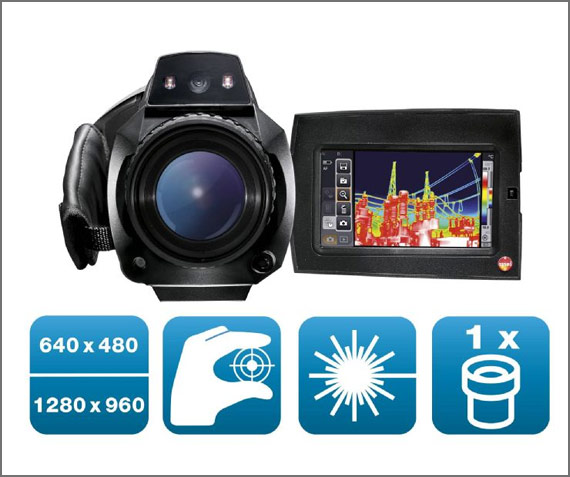

  • testo 890 professional thermal imager: resolution 640 × 480 pixels, upgradable to 1280 × 960 pixels with SuperResolution technology, thermal sensitivity < 40 mK
  • Super-telephoto lens with a 6.6° x 5° field of view for the accurate recording of extremely distant objects
  • Sequence capturing in the instrument a possible option, humidity calculation, SiteRecognition, panorama image assistant, JPEG storage function and other practical features

Price on request

GST and accessories extra.
Qty
  • USP's
  • Technical data
  • Downloads

Product Description

The testo 890 professional thermal imager with super-telephoto lens means you are ideally equipped for the following applications:
  • Inspecting high-voltage lines
  • Pinpointing hotspots in solar parks (which can indicate defective cells, for example)
  • Detecting irregularities in large industrial plants (such as refineries)


All the important information about the testo 890 thermal imager with super-telephoto lens
  • Up to 307,200 temperature measuring points: a detector size of 640 x 480 pixels guarantees accurate detection. Super Resolution technology even boosts image quality to 1280 x 960 pixels
  • You can also choose to save thermal images as JPEGs

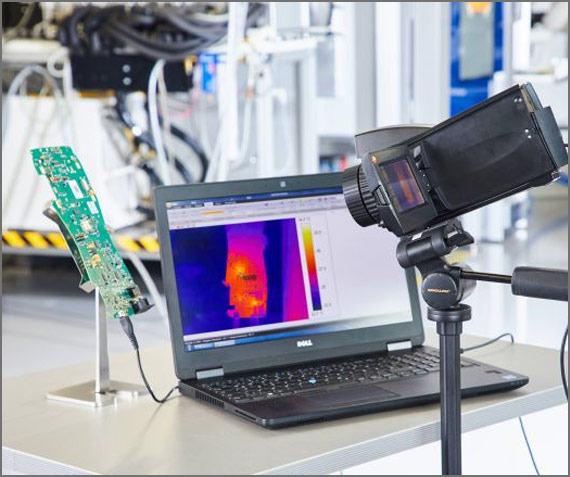

  • Process analysis package (optional): the combination of fully radiometric video and sequence capturing in the instrument enables wireless measurement and easier handling at the measuring location

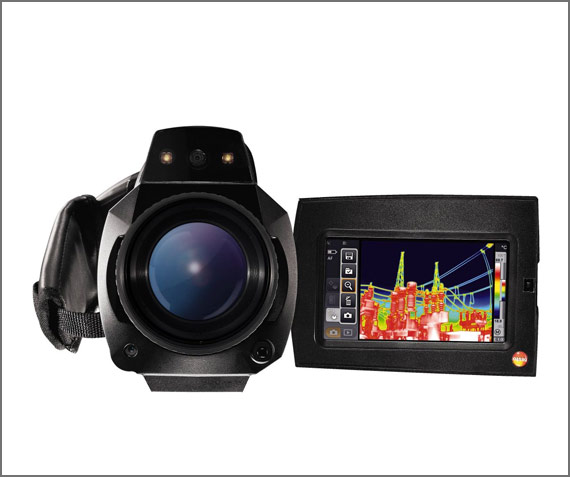

  • The camcorder design with wrist strap, along with the rotatable, fold-out display, makes taking images considerably easier. This makes it possible for a wide variety of camera angles, as well as one-hand operation
  • Panorama image assistant: individual images are combined into a panoramic image as soon as they are taken. This means, for instance, that you can take thermal images of entire building shells without having to laboriously compile them or assess them individually
  • Site Recognition technology: with similar measurement objects, the thermal imager identifies measuring locations immediately, assigns them automatically and archives them accordingly
  • Voice recording (as comments on the images) possible with headset which is included in the scope of delivery
  • Integrated digital camera with power LEDs: you can take well-lit, real images to go with every thermal image - making documentation and assignment easier
  • Fever Detection (optional): use the assistant to check people for high body temperature in public places and in means of transport – for public health protection
  • Exchangeable lenses optionally available (42° standard/wide-angle lens and 15° telephoto lens)

6.6° x 5° super-telephoto lens

  • Compatible super-telephoto lens for the testo 890 thermal imager
  • Small field of view (6.6° x 5°) for maximum resolution of particularly distant objects
  • Easy to handle: no additional lens holder needed

Delivery Scope
  • testo 890 thermal imager with 6.6° super-telephoto lens and Super Resolution
  • Robust case
  •  software IRSoft (free download)
  • SD memory card
  • USB cable for data transfer to the PC
  • Carrying strap for the thermal imager
  • Lens cleaning cloth
  • Mains unit
  • Li-ion rechargeable battery
  • Headset for voice recording

Delivery Scope

  • testo 885 thermal imager with 5° super-telephoto lens and Super Resolution
  • Robust transport case
  • Pro software IRSoft (free download)
  • SD card
  • USB cable
  • Carrying strap
  • Lens cleaning cloth
  • Mains unit
  • Li-ion rechargeable battery
  • Headset
Ambient Condition

Operating temperature

-15 to +50 °C

Storage temperature

-30 to +60 °C

Air humidity

20 to 80 % RH non-condensing

Housing protection class

IP54

Vibration

2G

Image output visual

Image size

3.1 MP

Minimum focus distance

0.5 m

Image presentation

Display type

4.3" LCD touchscreen with 480 x 272 pixels

Digital zoom

1x

Display option

IR image / real image

Colours

9 (iron, rainbow, rainbow HC, cold-hot, blue-red, grey, inverted grey, sepia, Testo)

Video output

USB 2.0, Micro HDMI

Imager equipment

Power-LED

Included

Process analysis package

Optional

JPEG storage

yes

Video streaming

via HDMI

Video measurement

up to 3 measurement points

Voice recording

Bluetooth****/wired headset

Panorama image assistant

Included

SiteRecognition

Included

Standard lens

5° x 3.7°

Digital camera

Included

Interface

Labview; Bluetooth®; USB 2.0; via HDMI

Bluetooth

Connection to the radio humidity probe and the Bluetooth® headset

Fever detection

Optional

Laser

Laser marker

**** Bluetooth only in the EU, Norway, Switzerland, USA, Canada, Colombia, Turkey, Japan, Russia, Ukraine, India, Australia

Imager storage

File format image

.bmt; export option in .bmp; .jpg; .png; .csv; .xls

File format video

.wmv; .mpeg-1

Storage device

SD card 2GB (approx. 1500 - 2000 images)

Infrared image output

Spectral range

7.5 to 14 µm

Infrared resolution

320 x 240 pixels

Thermal sensitivity

˂ 30 mK at +30 °C

Field of view

5° x 3,7° (super-telephoto lens)

Minimum focus distance

2 m (Super-telephoto lens)

Geometric resolution (IFOV)

0.27 mrad (super-telephoto lens)

SuperResolution (Pixel)

640 x 480 pixels

SuperResolution (IFOV)

0.17 mrad (Super-telephoto lens)

Image refresh rate

33 Hz

Focus

auto / manual

*inside the EU, outside 9 Hz

Measurement

Measuring range

-30 to +100°C; 0 to +350 °C (switchable); 0 to +650 °C (switchable)

High temperature measuring

+350 ... +1200 °C (not in connection with the telephoto lens)

Accuracy

±2 °C, ±2 % of m.v.

Emissivity

0.01; 1

Reflected temperature

manual

Transmission correction

Included

Accuracy high temperature

±2 °C, ±2 % of m.v.

Measuring function

Surface moisture distribution

Included

Humidity measurement

Optional

Solar mode – manual

Included

Analysis function

up to 10 measurement points, Hot/Cold Spot Recognition, up to 5 x area measurement (min/max & average), Isotherm and alarm values

Humidity measurement with humidity measuring instrument

with radio humidity probe; Automatic measurement value transfer of thermohygrometer testo 605i via Bluetooth (instrument must be ordered separately); Wireless permit in EU, EFTA, USA, Canada, Australia, Turkey; *Wireless humidity probes only in the EU, Norway, Switzerland, USA, Canada, Colombia, Turkey, Brazil, Chile, Mexico, New Zealand, Indonesia; Not included

PC software

System requirements

Windows 10; Windows 8; Windows 7 (Service Pack 1)

Physical specification

Dimensions

253 x 132 x 111 mm

Weight

1570 g

Tripod mounting

1/4" - 20UNC

Product-/housing material

Plastic

Power supply

Battery type

Fast-charging, Li-ion battery can be changed on-site

Operating time

4.5 h

Mains operation

yes

Termovisores garantia

EU-/EG-guidelines

2004/108/EG

General technical data

Product colour

Black

Display ligthing

bright / normal / dark
