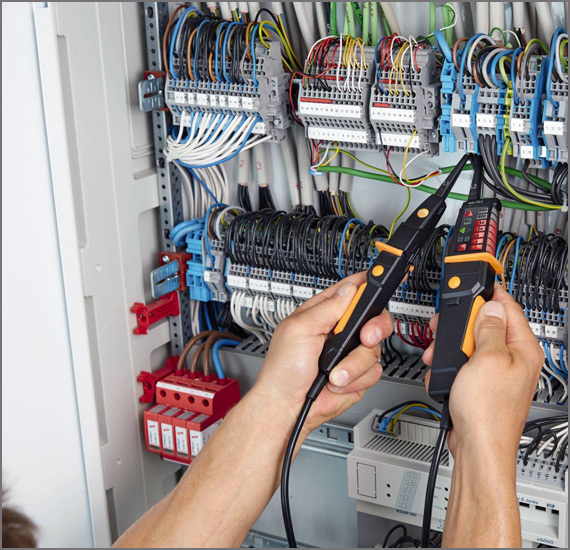

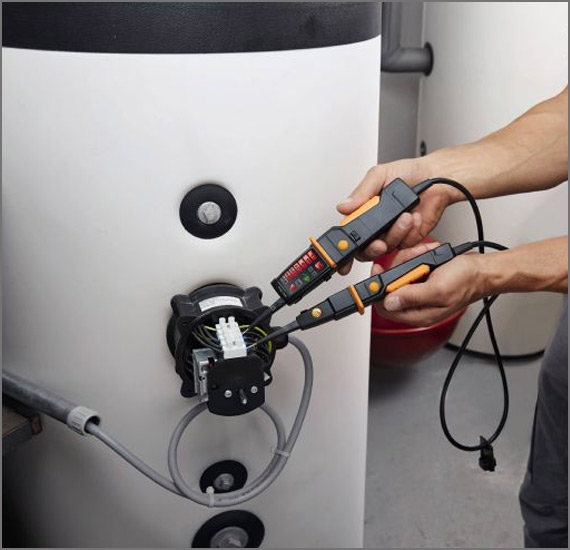

Your reliable companion when it comes to testing electrical systems and equipment. The all-round LED display and unique fibre-optic technology mean the voltage indication can be seen clearly and distinctly from any position with this voltage tester.

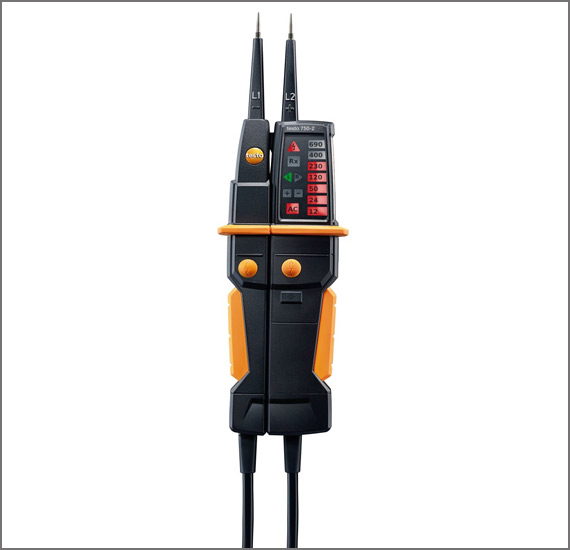

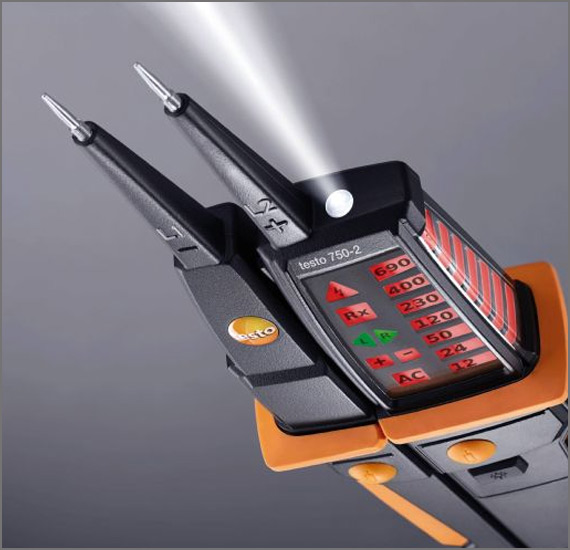

The testo 750-2 voltage tester means you can work more conveniently than ever before. Its clear, patented all-round LED display can easily be read in any position and indicates the presence of voltage clearly and distinctly with large fibre-optic illuminators. It can be held securely in your hand thanks to the deep-seated anti-slip ring and the ergonomic handle. You can easily illuminate dark measuring points using the integrated torch. The robust housing makes the voltage tester extremely durable. In addition to determining voltage or de-energization on electrical circuits or systems, the testo 750-2 voltage tester is also suitable for use as a continuity tester and for rotating magnetic field measurement. It also has an RC trigger function for testing residual current circuit breakers. Vibrating load buttons ensure that trigger tests cannot be carried out accidentally.
Your reliable companion when it comes to testing electrical systems and equipment. The all-round LED display and unique fibre-optic technology mean the voltage indication can be seen clearly and distinctly from any position with this voltage tester.
DC voltage | |
---|---|
Measuring range | 12 to 690 V |
Accuracy | according to DIN EN 61243-3:2011 |
AC voltage | |
---|---|
Measuring range | 12 to 690 V |
Accuracy | according to DIN EN 61243-3:2011 |
General technical data | |
---|---|
Operating humidity | 0 to 95 %RH |
Weight | 295 g |
Dimensions | 270 x 70 x 35 mm |
Operating temperature | -10 to +50 °C |
Product colour | Black |
Protection class | IP64 |
Standards | EN 61243-3; EN 61326-1; EN 61010-1 |
Battery type | 2 AAA micro batteries |
Storage temperature | -15 to +60 °C |
Overvoltage Category | CAT IV 600V; CAT III 1000V |
Authorizations | CSA; CE |
Instrument Measurement Functions | |
---|---|
Continuity testing | yes |
RDC/RC trigger function | yes |
Rotating magnetic field testing | yes |
Single pole phase testing | yes |
Measuring point illumination | yes |
