Thermal imaging camera

Item Code : Testo 871

The testo 871 thermal imager combines high infrared resolution with professional measuring performance and easy handling. Its high-quality pixel detector, an integrated digital camera and, last but not least, the innovative functions are the features that impress. The testo Thermography App enables the testo 871 to offer smart thermography to meet professional requirements in industry and trade. The case supplied with the thermal imager means it can be conveniently transported, so it is always there for you when needed.

Item Features :

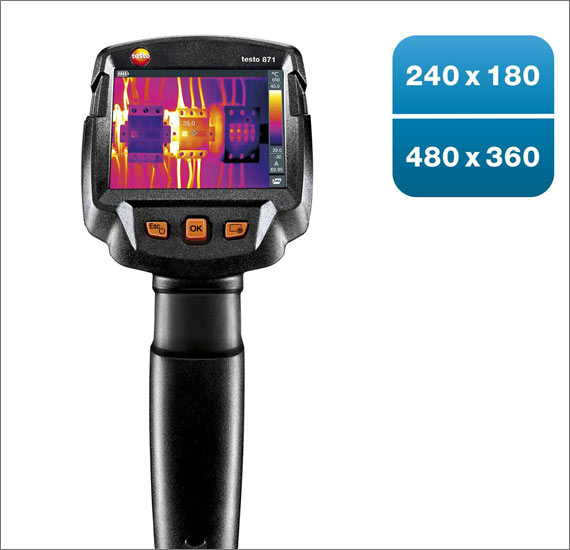

  • Very good image quality: IR resolution of 160 x 120 pixels, via integrated testo SuperResolution Technology 320 x 240 pixels
  • Wireless networking: wireless transmission of readings from the testo 770-3 clamp meter and the testo 605i thermohygrometer (both available separately)
  • Smart: the free testo Thermography App enables you to write and send reports on site, as well as saving them online, and lots more.
  • Large temperature measuring range from -30°C to +650°C

Rs. 256,240

GST and accessories extra.
Qty
  • USP's
  • Technical data
  • Downloads

Product Description

We developed the testo 871 thermal imager together with our experienced professionals to enable you to work quickly and easily with professional thermal imaging technology. You can generate error-free and objectively comparable infrared images using its handy functions. The IFOV warner, testo ɛ-Assist and testo ScaleAssist mean you can avoid measurement errors and not only effortlessly achieve optimum setting of emissivity (ɛ) and reflected temperature (RTC) for building thermography, but also of colour scale.


The testo 871 thermal imager– smart and networked

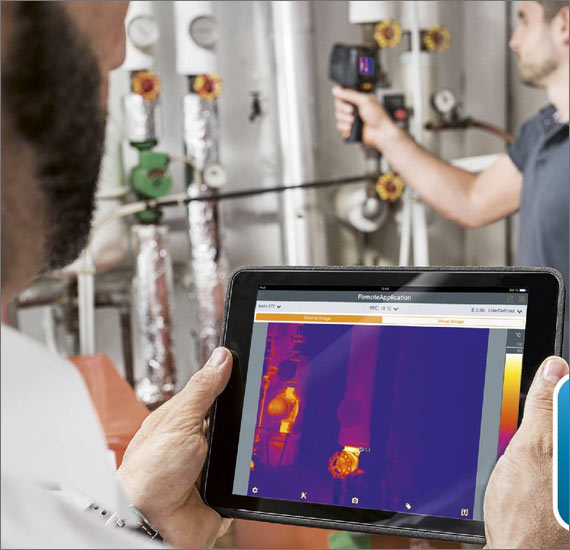

The testo 871 thermal imager communicates wirelessly via WLAN with your mobile terminal devices. The testo Thermography App for iOS and Android offers you the possibility of writing and sending reports on site, as well as saving them online, and of using your smartphone or tablet as a second display or for remote control.

The testo 871 delivers even more informative thermal images in combination with the compatible 770-3 clamp meter and the testo 605i thermohygrometer. Both are available separately – simply order them straight away along with your testo 871. The measurement results of both measuring instruments can easily be transmitted via Bluetooth. The additional output, current and voltage values of the testo 770-3 clamp meter enable better interpretation of measured temperatures. Measure the air temperature and humidity with the testo 605i and easily detect locations at risk of developing mould using the special humidity palette in the thermal imager via the traffic light principle.


Areas of application of the testo 871 thermal imager

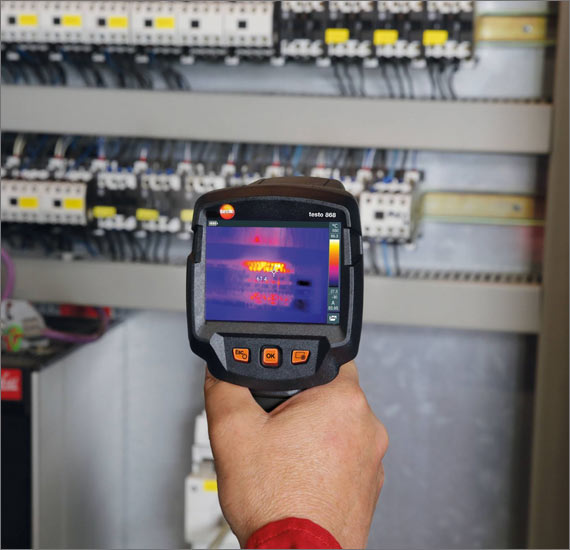

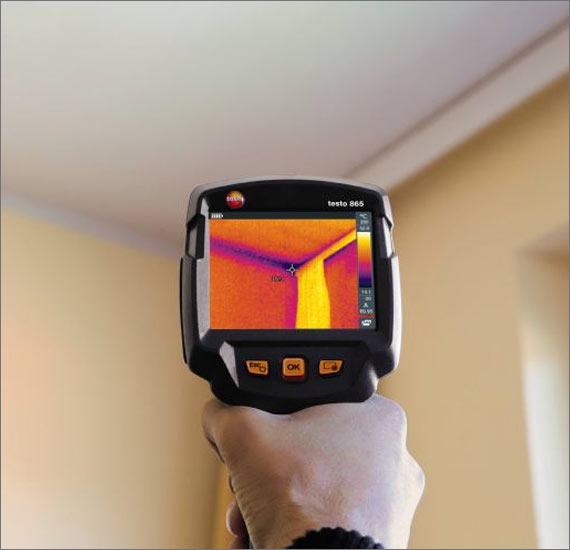

Detect leaks, pinpoint thermal bridges, discover structural defects, identify overheated connections or assess mould damage. The testo 871 thermal imager is ideal for applications in daily maintenance and installation work in trade and industry. Quick, simple and reliable for maintenance and detection of defects.



Delivery Scope

testo 871 thermal imager with radio module for Bluetooth/WLAN, USB cable, mains unit, lithium-ion rechargeable battery, pro software IRSoft (free download), 3 x testo ε-Markers, commissioning instructions, short instructions, calibration protocol and case.
Termovisores garantia

EU-/EG-guidelines

RED: 2014/53/EU; EMC: 2014/30/EU

Infrared image output

Infrared resolution

240 x 180 pixels

Thermal sensitivity

90 mK

Field of view

35° x 26°

Minimum focus distance

<0.5 m

Geometric resolution (IFOV)

2.6 mrad

SuperResolution (Pixel)

480 x 360 pixels

SuperResolution (IFOV)

1.6 mrad

Image refresh rate

9 Hz

Focus

Fixed focus

Spectral range

7.5 to 14 µm

Image output visual

Image size

at least 3.1 MP

Minimum focus distance

0.5 m

Image presentation

Display type

8.9 cm (3.5") TFT, QVGA (320 x 240 pixels)

Display option

IR image / real image

Colours

4 (iron, rainbow, cold-hot, grey)

Measurement

Measuring range

-30 to +100 °C; 0 to +650 °C

Accuracy

±2 °C, ±2 % of mv

Emissivity

0.01 to 1

Reflected temperature

manual

testo ε-Assist

Included

Measuring function

Solar mode – manual

Input solar radiation

Analysis function

Mean point measurement, hot/cold-spot recognition, Delta T

Electrical mode - manual

Input current voltage power

IFOV warner

Included

Humidity mode - manual

Included

testo ScaleAssist

Included

Humidity measurement with humidity measuring instrument

Automatic measurement value transfer of thermohygrometer testo 605i via Bluetooth (instrument must be ordered separately); Wireless permit in EU, EFTA, USA, Canada, Australia, Turkey

Electrical measurement with clamp meter

Automatic measurement value transfer of clamp meter testo 770-3 via Bluetooth (instrument must be ordedered separately); Wireless permit in EU, EFTA, USA, Canada, Australia, Turkey

Imager equipment

Full screen mode

Included

JPEG storage

Included

Video streaming

via Wi-Fi with testo Thermography App

Standard lens

35° x 26°

Digital camera

Included

Interface

USB 2.0 Micro B

WLAN Connectivity

Communication with the testo Thermography App wireless module Bluetooth/Wi-Fi (EU, EFTA, USA, AUS, CDN, TR)

Bluetooth

Measurement value transfer from thermohygrometer testo 605i, clamp meter testo 770-3 (optional); Wireless permit in EU, EFTA, USA, Canada, Australia, Turkey

Imager storage

File format image

.bmt; .jpg; export option in .bmp; .jpg; .png; .csv; .xls

Storage device

Internal Memory (2.8 GB)

Power supply

Battery type

Fast-charging, Li-ion battery can be changed on-site

Operating time

4.0 h

Mains operation

yes

Ambient Condition

Air humidity

20 to 80 %RH non-condensing

Housing protection class

IP54

Vibration

2G

Storage temperature

-30 to +60 °C

Operating temperature

-15 to +50 °C

PC software

System requirements

Windows 10; Windows 8; Windows 7

General technical data

Product colour

Black

Display ligthing

bright / normal / dark

Physical specification

Product-/housing material

PC - ABS

Weight

510 g

Dimensions

219 x 96 x 95 mm
