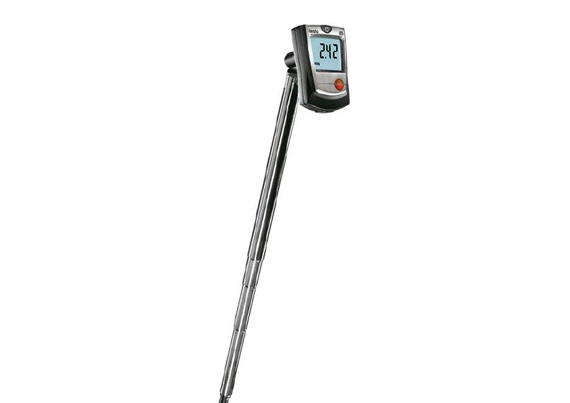

Pocket sized thermal anemometer

Item Code : Testo 405
  • For measurements in ventilation ducts and in rooms.
  • Measurement of air velocity, volumetric flow and air temperature.
  • Telescope extendible to 300 mm.

Delivery Scope

testo 405 thermal anemometer with permanently mounted telescope, including duct bracket, attachment clip and batteries.

Rs. 8,891.00

GST and accessories extra.
Qty
  • USP's
  • Technical data
  • Downloads

If, in your capacity as an HVAC engineer, you carry out fast check measurements in ventilation ducts or in rooms, then testo 405 thermal anemometer is a must-have. The thermal anemometer features a permanently mounted telescope and enables you to measure air flow, volumetric flow and air temperature.

The measuring range for flow is between 0 to 10 m/s, volumetric flows are calculated up to 99,990 m3/h.  The extendible telescope (up to 300 mm) makes the thermal anemometer particularly suitable for flow measurements in ventilation ducts. The illuminated display can be swivelled into various positions, ensuring that the readings can be read off comfortably. The duct bracket (included in the delivery) offers key practical advantages. You can use this to optimally position the telescope in the ventilation duct and obtain precise measurement results.  Since the thermal anemometer testo 405 measures particularly accurately in the range between 0 and 2 m/s, you can also use it to measure the air velocity in rooms for checking indoor air quality.

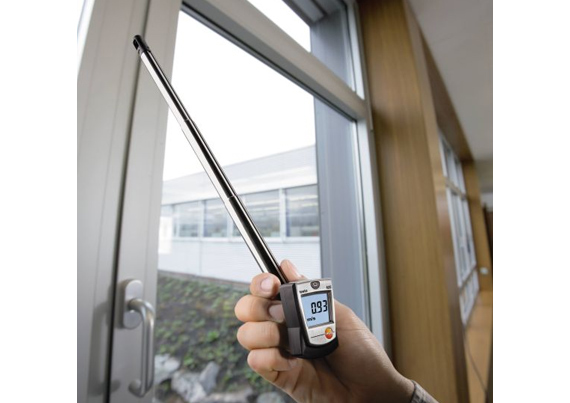

Low air velocities, at draughty windows for example, are quickly located and accurately measured using the thermal anemometer.

Integrated sensor protection: when you are not using the testo 405 thermal anemometer, the rotating protective cap protects the flow sensor from mechanical stress.

General technical data

Weight

115 g (with batteries, without packaging)

Dimensions

490 x 37 x 36 mm

Operating temperature

0 to +50 °C

Battery type

3 AAA micro batteries

Battery life

Approx. 20 h

Display type

LCD

Length probe shaft

300 mm

Diameter probe shaft

16 mm

Diameter probe shaft tip

12 mm

Storage temperature

-20 to +70 °C

Temperature - NTC

Measuring range

-20 to +50 °C

Accuracy

±0.5 °C

Resolution

0.1 °C

Velocity -Thermal anemometer

Measuring range

0 to 5 m/s (-20 to 0 °C)

0 to 10 m/s (0 to +50 °C)

0 to 99990 m³/h

Accuracy

±(0.1 m/s + 5 % of mv) (0 to 2 m/s)

±(0.3 m/s + 5 % of mv) (Remaining Range)

Resolution

0.01 m/s
