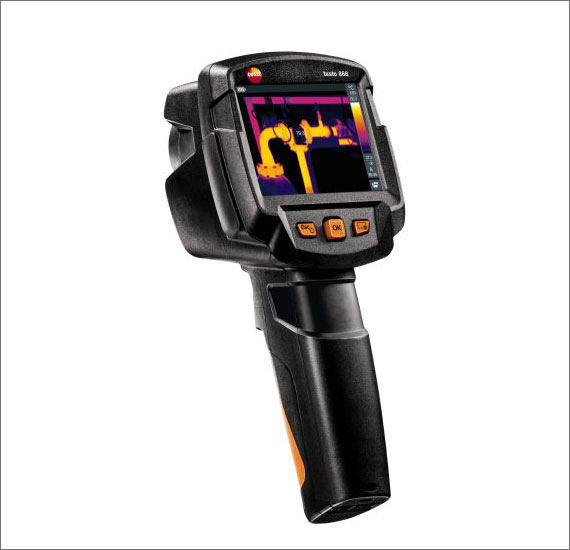

Smart Thermal Imager

Item Code : Testo 868

The testo 868 thermal imager is characterized by its professional measuring performance and its easy handling. It has the best thermal image quality in its class, an integrated digital camera and impressive smart functions. The case supplied with the thermal imager means it can be conveniently transported, so it is always there for you when needed.

Item Features :

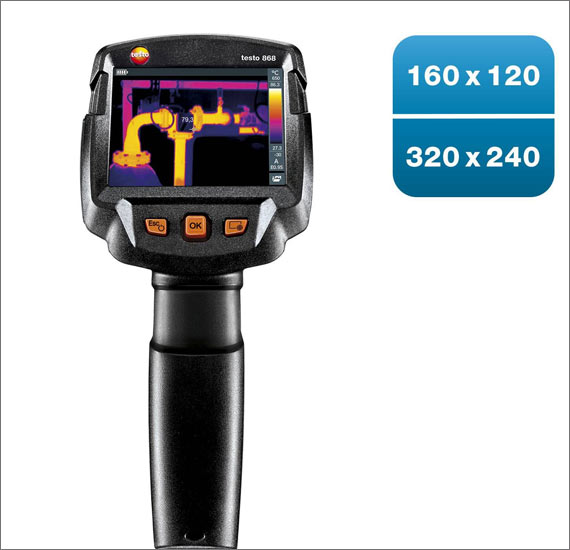

  • Very good image quality: IR resolution of 160 x 120 pixels, via integrated testo SuperResolution Technology 320 x 240 pixels
  • Large temperature measuring range from -30°C to +650°C
  • Smart and networked: the free testo Thermography App enables you to write and send reports on site, as well as saving them online, and lots more.
  • Integrated digital camera

Rs. 192,150

GST and accessories extra.
Qty
  • USP's
  • Technical data
  • Downloads

Product Description

With the testo 868 thermal imager, we have developed a thermal imager which makes work quicker and easier – without foregoing professional thermal imaging technology. You can generate error-free and objectively comparable infrared images using its handy functions. The IFOV warner, testo ɛ-Assist and testo ScaleAssist mean you can avoid measurement errors and not only effortlessly achieve optimum setting of emissivity (ɛ) and reflected temperature (RTC) for building thermography, but also of colour scale.


The testo 868 thermal imager– smart and networked

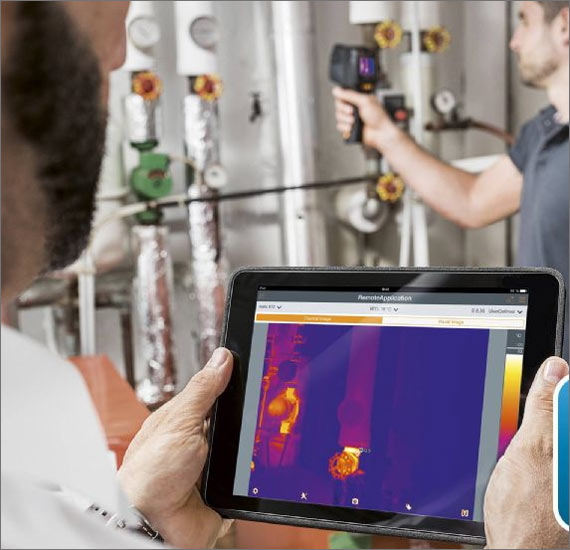

The testo 868 thermal imager guarantees wireless communication with your mobile terminal device via WLAN. With the testo Thermography App for iOS and Android you can write and send reports directly on site, as well as saving them online, and you can use your smartphone or tablet as a second display or for remote control.


Areas of application of the testo 868 thermal imager

Detect leaks, identify overheated connections, pinpoint thermal bridges or detect structural defects. The testo 868 thermal imager was developed for applications in daily maintenance and installation work in trade and industry. It enables quick and reliable work when you are detecting defects and carrying out maintenance.


Delivery Scope

testo 868 thermal imager with radio module for WLAN, USB cable, mains unit, lithium-ion rechargeable battery, pro software IRSoft (free download), 3 x testo ε-Markers, commissioning instructions, short instructions, calibration protocol and case.
Termovisores garantia

EU-/EG-guidelines

EMC: 2014/30/EU; RED: 2014/53/EU

Infrared image output

Infrared resolution

160 x 120 pixels

Thermal sensitivity

100 mK

Field of view

31° x 23°

Minimum focus distance

<0.5 m

Geometric resolution (IFOV)

3.4 mrad

SuperResolution (Pixel)

320 x 240 pixels

SuperResolution (IFOV)

2.1 mrad

Image refresh rate

9 Hz

Focus

Fixed focus

Spectral range

7.5 to 14 µm

Image output visual

Image size

at least 3.1 MP

Minimum focus distance

0.5 m

Image presentation

Display type

8.9 cm (3.5") TFT, QVGA (320 x 240 pixels)

Display option

IR image / real image

Colours

4 (iron, rainbow, cold-hot, grey)

Measurement

Measuring range

-30 to +100° C; 0 to +650° C

Accuracy

±2 °C, ±2 % of mv

Emissivity

0.01 to 1

Reflected temperature

manual

testo ε-Assist

Included

Measuring function

Analysis function

Mean point measurement, hot/cold-spot recognition, Delta T

IFOV warner

Included

testo ScaleAssist

Included

Imager equipment

Full screen mode

Included

JPEG storage

Included

Video streaming

via Wi-Fi with testo Thermography App

Standard lens

31° x 23°

Digital camera

Included

Interface

USB 2.0 Micro B

WLAN Connectivity

Communication with the testo Thermography App; wireless module WLAN (EU, EFTA, USA, AUS, CDN, TR)

Imager storage

File format image

.bmt; export option in .bmp; .png; .csv; .xls; .jpg

Storage device

Internal Memory (2.8 GB)

Power supply

Battery type

Fast-charging, Li-ion battery can be changed on-site

Operating time

4.0 h

Mains operation

yes

Ambient Condition

Air humidity

20 to 80 %RH non-condensing

Housing protection class

IP54

Vibration

2G

Storage temperature

-30 to +60 °C

Operating temperature

-15 to +50 °C

Physical specification

Product-/housing material

PC - ABS

Weight

510 g

Dimensions

219 x 96 x 95 mm

PC software

System requirements

Windows 10; Windows 8; Windows 7

General technical data

Product colour

Black

Display ligthing

bright / normal / dark
