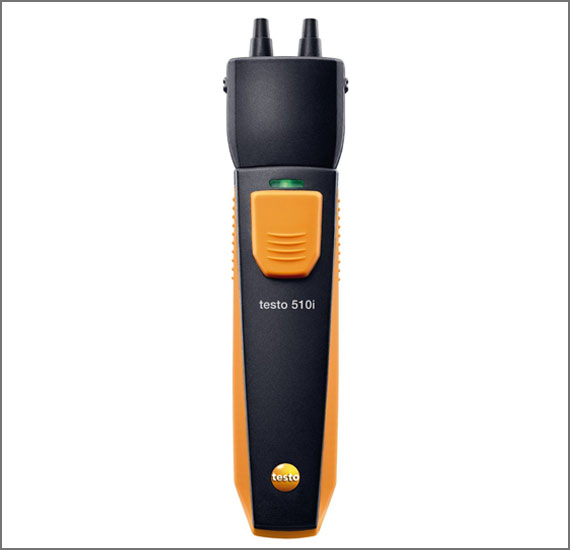

Differential Pressure Measuring Instrument

Item Code : testo 510i
  • Measurement of gas flow and static pressure
  • Measurement menu for pressure drop test including alerts
  • Simple configuration and determination of volume flow with Pitot tube
  • Magnetic holder for easy attachment

Delivery Scope

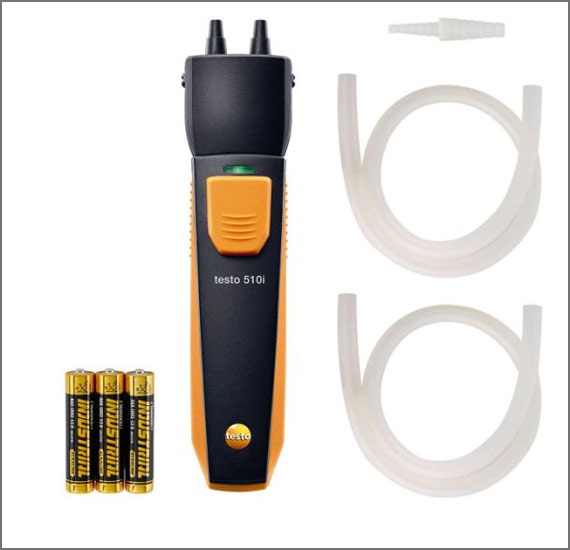

testo 510i differential pressure measuring instrument with smartphone operation, including hose set (Ø 4 mm and 5 mm) with adapter, batteries and calibration protocol.

Rs. 12,794.00

GST and accessories extra.
Qty
  • USP's
  • Technical data
  • Downloads

The testo 510i differential pressure measuring instrument, used in conjunction with a smartphone or tablet, is suitable for quick and easy measurement of gas flow pressure and static pressure, as well as pressure drops on fans and filters.

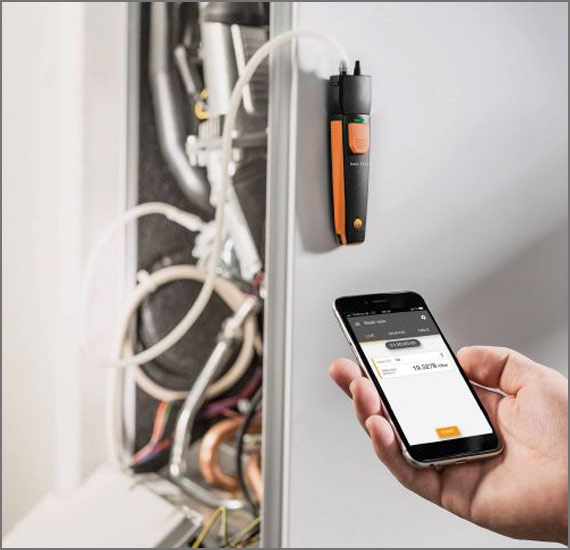

Use your smartphone or tablet as a display: installed on a terminal device, the testo Smart App allows you to view testo 510i readings conveniently and carry out reliable timed and multi-point mean calculation. The App also includes a measurement menu for the pressure drop test. All measurement data can be displayed as a chart or in table form. The measurement data log can be emailed directly as a PDF or Excel file.



System requirements:



iOS 11 or later

Android 6.0 or later

Bluetooth 4.0

Differential pressure (internal sensor) - Piezoresistive

Measuring range

-150 to +150 hPa

Accuracy

±0.05 hPa (0 to +1 hPa)

±(0.2 hPa + 1.5 % of mv) (+1 to +150 hPa)

Resolution

0.01 hPa

General technical data

Weight

92 g

Dimensions

148 x 36 x 23 mm

Operating temperature

-20 to +50 °C

Product-/housing material

ABS / TPE

System requirements

requires iOS 11.0 or newer; requires Android 6.0 or newer; requires mobile end device with Bluetooth 4.0

Product colour

black/orange

Battery type

3 AAA micro batteries

Battery life

150 h

Storage temperature

-20 to +60 °C
