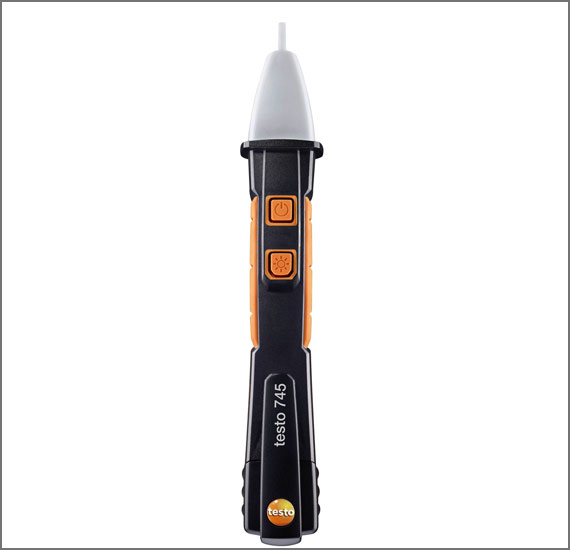

Non-Contact Voltage Tester

Item Code : testo 745

The testo 745 non-contact voltage tester is ideally suited for fast initial checking of any suspected fault sources. It filters high-frequency interference signals and has a two-stage sensitivity setting.

Item Features :
  • Voltage range up to 1,000 V
  • Waterproof and dustproof according to IP 67
  • Adjustable for phase detection or voltage indication
  • Visual and acoustic signal

Rs. 3,960.00

GST and accessories extra.
Qty
  • USP's
  • Technical data
  • Downloads

The testo 745 non-contact voltage tester is ideally suited for fast initial checking of any suspected fault sources. It filters high-frequency interference signals and has a two-stage sensitivity setting.

Item Features :
  • Voltage range up to 1,000 V
  • Waterproof and dustproof according to IP 67
  • Adjustable for phase detection or voltage indication
  • Visual and acoustic signal
AC voltage

Measuring range

12 to 1000 V

General technical data

Operating humidity

0 to 80 %RH

Weight

63 g

Dimensions

155 x 25 x 23 mm

Operating temperature

-10 to +50 °C

Product colour

Black

Protection class

IP67

Standards

EN 61326-1; EN 61010-1

Alarm function

by LED; audible

Battery type

2 AAA micro batteries

Storage temperature

-15 to +60 °C

Overvoltage Category

CAT IV 600V; CAT III 1000V

Authorizations

CSA; CE

Instrument Measurement Functions

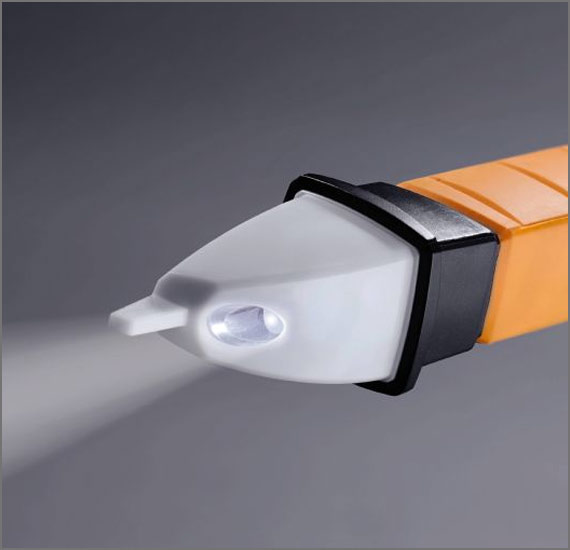

Measuring point illumination

yes
