testo 865 - Thermal imager (160 x 120 pixels)

Item Code : Testo 865

The testo 865 thermal imager combines all the important properties required for high-quality thermographic measurement – it is accurate, robust, fast and reliable. The testo 865 provides high-quality thermography at an affordable price and keeps going even in tough working conditions. The case supplied with the thermal imager means it can be conveniently transported, so it is always there for you when needed.

Item Features :

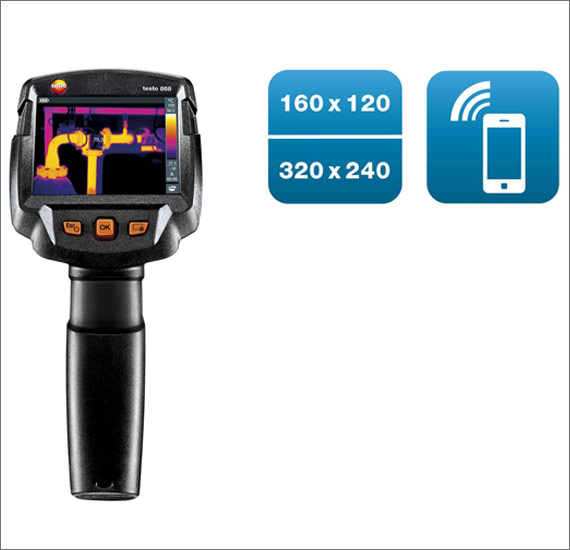

  • Very good image quality: IR resolution of 160 x 120 pixels, via integrated testo SuperResolution Technology 320 x 240 pixels
  • Very good measuring accuracy of ±2°C
  • Visualizing temperature differences from 0.12°C
  • Automatic detection of hot and cold spots

Rs.125,550/-

GST and accessories extra.
Qty
  • USP's
  • Technical data
  • Downloads

Product Description

The testo 865 thermal imager offers professional technology and concentrates on functions which are needed in a contractor's daily work. The testo 865 is a user-friendly thermal imager, optimized for fast and efficient work. With the testo ScaleAssist functions ensuring optimum setting of the thermal image scale for building thermography and the IFOV warner making sure you avoid measurement errors, you will always generate the perfect infrared image.


Areas of application of the testo 865 thermal imager

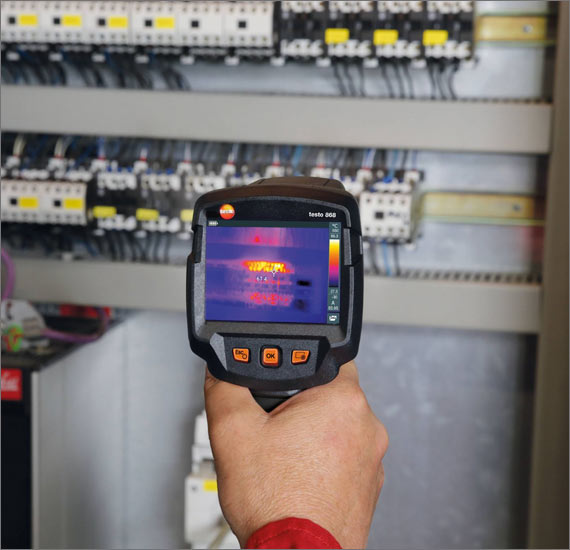

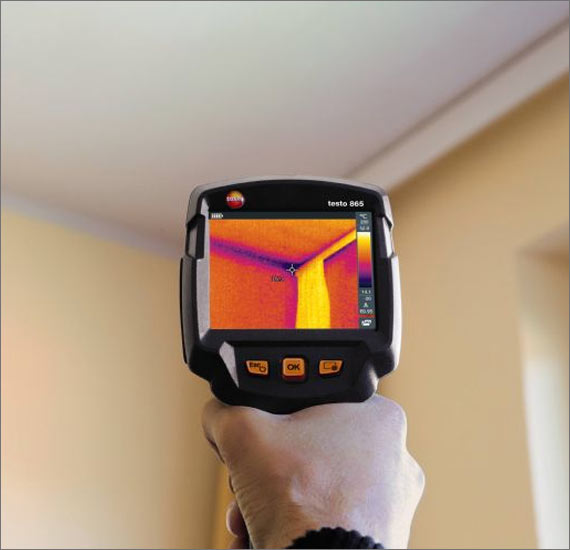

Detect leaks, identify overheated connections, pinpoint thermal bridges or detect structural defects. The testo 865 thermal imager is ideal for applications in daily maintenance and installation work in trade and industry. It enables time-saving quality assurance and ensures reliable production control.

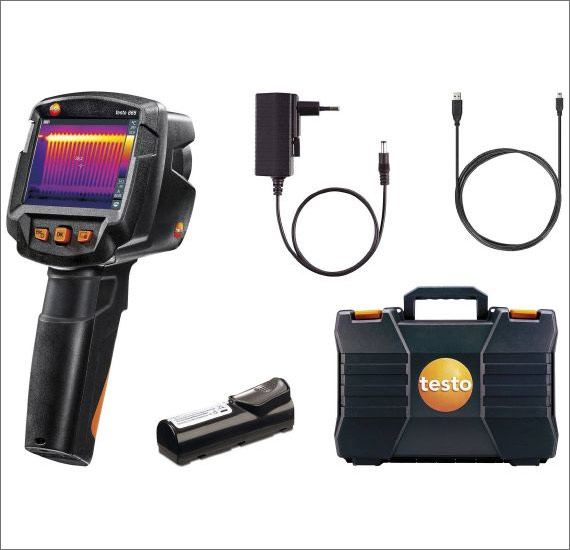

Delivery Scope

testo 865 thermal imager, including USB cable, mains unit, lithium-ion rechargeable battery, IRSoft professional software (free download), commissioning instructions, short instructions, calibration protocol and case.

Ambient Condition

Operating temperature

-15 to +50 °C

Storage temperature

-30 to +60 °C

Air humidity

20 to 80 %RH non-condensing

Housing protection class

IP54

Vibration

2G

Image presentation

Display type

8.9 cm (3.5") TFT, QVGA (320 x 240 pixels)

Display option

IR image only

Colours

4 (iron, rainbow, cold-hot, grey)

Imager equipment

Full screen mode

Included

JPEG storage

Included

Video streaming

via USB

Standard lens

31° x 23°

Interface

USB 2.0 Micro B

Imager storage

File format image

.bmt; .jpg; export option in .bmp; .jpg; .png; .xls; .csv

Storage device

Internal Memory (2.8 GB)

Infrared image output

Spectral range

7.5 to 14 µm

Infrared resolution

160 x 120 pixels

Thermal sensitivity

120 mK

Field of view

31° x 23°

Minimum focus distance

<0.5 m

Geometric resolution (IFOV)

3.4 mrad

SuperResolution (Pixel)

320 x 240 pixels

SuperResolution (IFOV)

2.1 mrad

Image refresh rate

9 Hz

Focus

Fixed focus

Measurement

Measuring range

-20 to +280 °C

Accuracy

±2 °C, ±2 % of mv

Emissivity

0.01 to 1

Reflected temperature

manual

Measuring function

Analysis function

Mean point measurement, hot/cold-spot recognition, Delta T

IFOV warner

Included

testo ScaleAssist

Included

PC software

System requirements

Windows 10; Windows 8; Windows 7

Physical specification

Dimensions

219 x 96 x 95 mm

Weight

510 g

Product-/housing material

PC - ABS

Power supply

Battery type

Fast-charging, Li-ion battery can be changed on-site

Operating time

4.0 h

Mains operation

yes

Termovisores garantia

EU-/EG-guidelines

EMC: 2014/30/EU

General technical data

Product colour

Black

Display ligthing

bright / normal / dark
