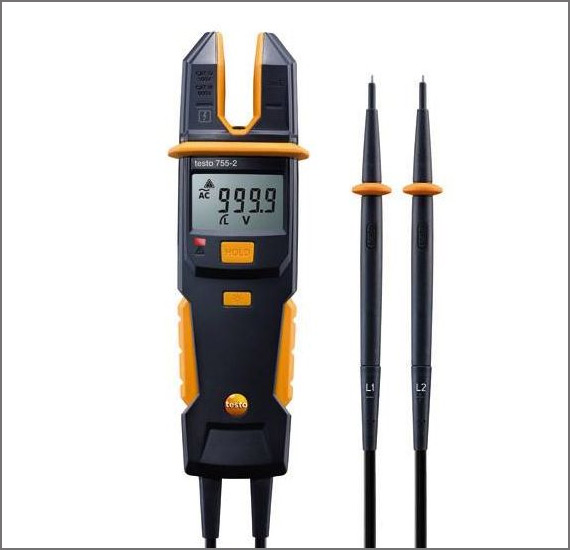

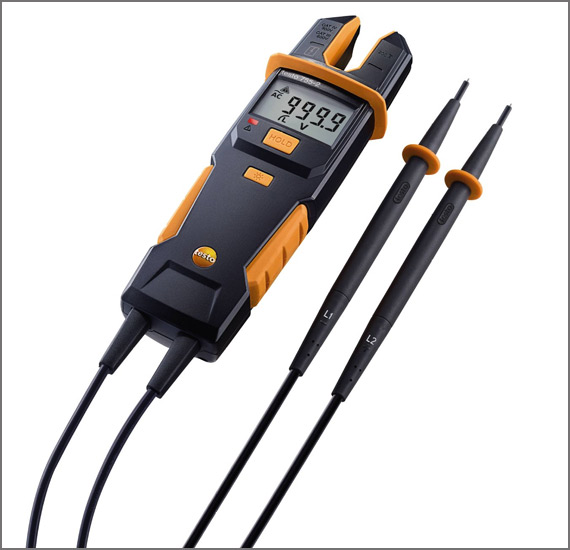

Current/voltage tester

Item Code : testo 755-2

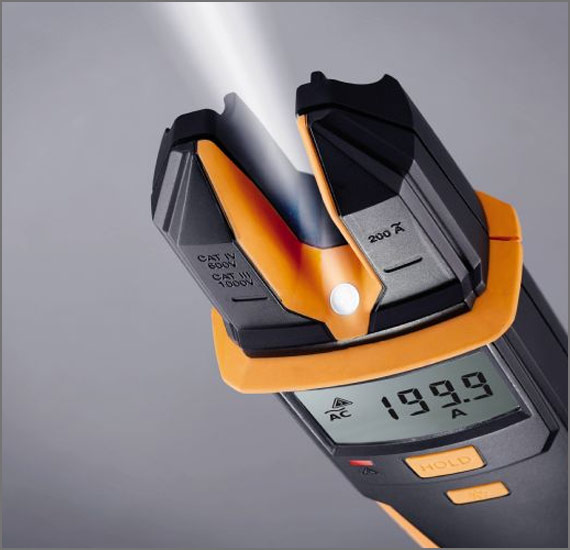

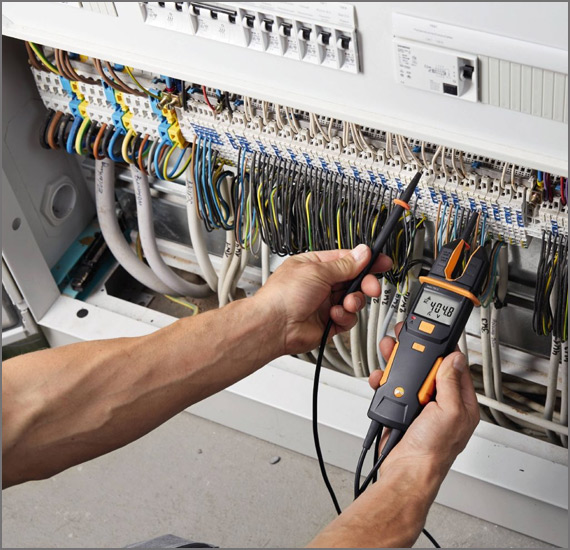

With the testo 755-2, you are equipped for the most important tasks of the working day. The current/voltage tester is suitable for determining voltage or de-energization, checks voltage level and continuity and measures flow of current along with current consumption. It is a simple task to change faulty measuring tips – without needing to replace the instrument. And the automatic measurement parameter detection and integrated torch make operation and measurement particularly easy and reliable. Compared to the testo 755-1, the testo 755-2 has an increased voltage range of up to 1,000 V and enables rotating magnetic field measurement along with single pole voltage testing to determine quickly whether conductors are live.

Rs. 21,710.00/-

GST and accessories extra.
Qty
  • USP's
  • Technical data
  • Downloads

All-in-one voltage tester and current measuring instrument: the innovative testo 755-2. A multitasker for almost all daily electrical measuring tasks. With automatic measurement parameter detection, exchangeable measuring tips and an extended voltage range up to 1,000 V.

Item Features :
  • Simple, reliable operation with automatic selection of measurement parameters
  • DIN EN 61243-3:2014 and DIN EN 61010‑1:2011 certified
  • Single pole voltage testing to determine quickly whether conductors are live
  • Voltage range up to 1,000 V
DC voltage

Measuring range

6 to 600 V

Resolution

max. 0.1 V

Accuracy

± (1.5 % of mv + 3 Digit)

AC voltage

Measuring range

6 to 600 V

Resolution

max. 0.1 V

Accuracy

± (1.5 % of mv + 3 Digit)

AC current

Measuring range

0.1 to 200 A

Resolution

max. 0.1 A

Accuracy

± (3 % of mv + 3 Digit)

Resistance

Resolution

max. 1 Ohm

Measuring range

30 to 100 kOhm

Accuracy

± (1.0 % of mv + 5 Digit)

General technical data

Operating humidity

0 to 75 %RH

Weight

320 g

Dimensions

199 x 62 x 40 mm

Operating temperature

-10 to +50 °C

Product colour

Black

Protection class

IP64

Standards

EN 61243-3; EN 61010-1

Battery type

2 AAA micro batteries

Display type

LCD

Display size

one-line

Storage temperature

-15 to +60 °C

Overvoltage Category

CAT IV 600V; CAT III 1000V

Authorizations

CSA; CE

Instrument Measurement Functions

Continuity testing

yes

Display ligthing

yes

Hold

yes

Measuring point illumination

yes

Display (counts)

4,000

Autom. measurement parameter detection

yes
